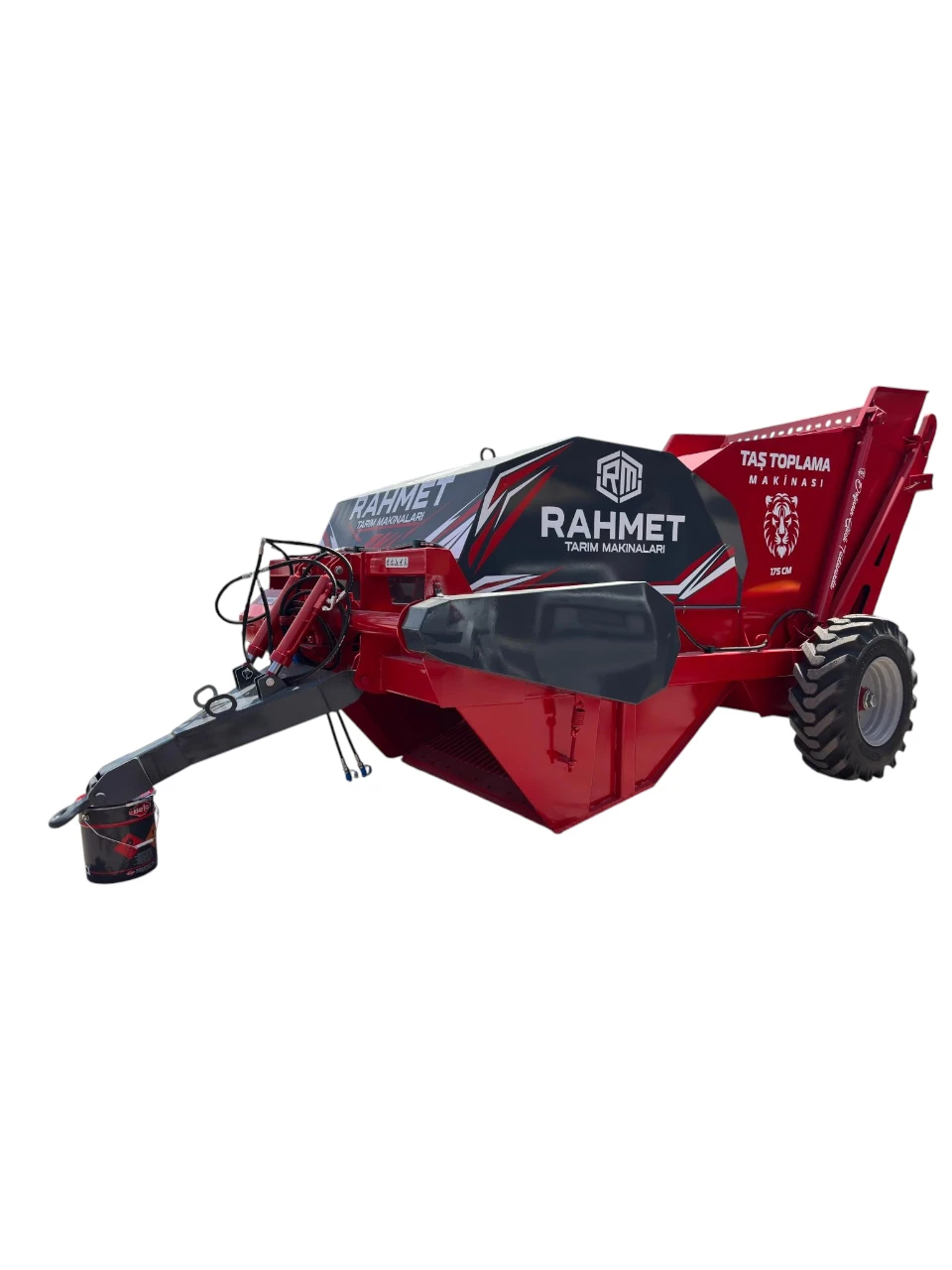

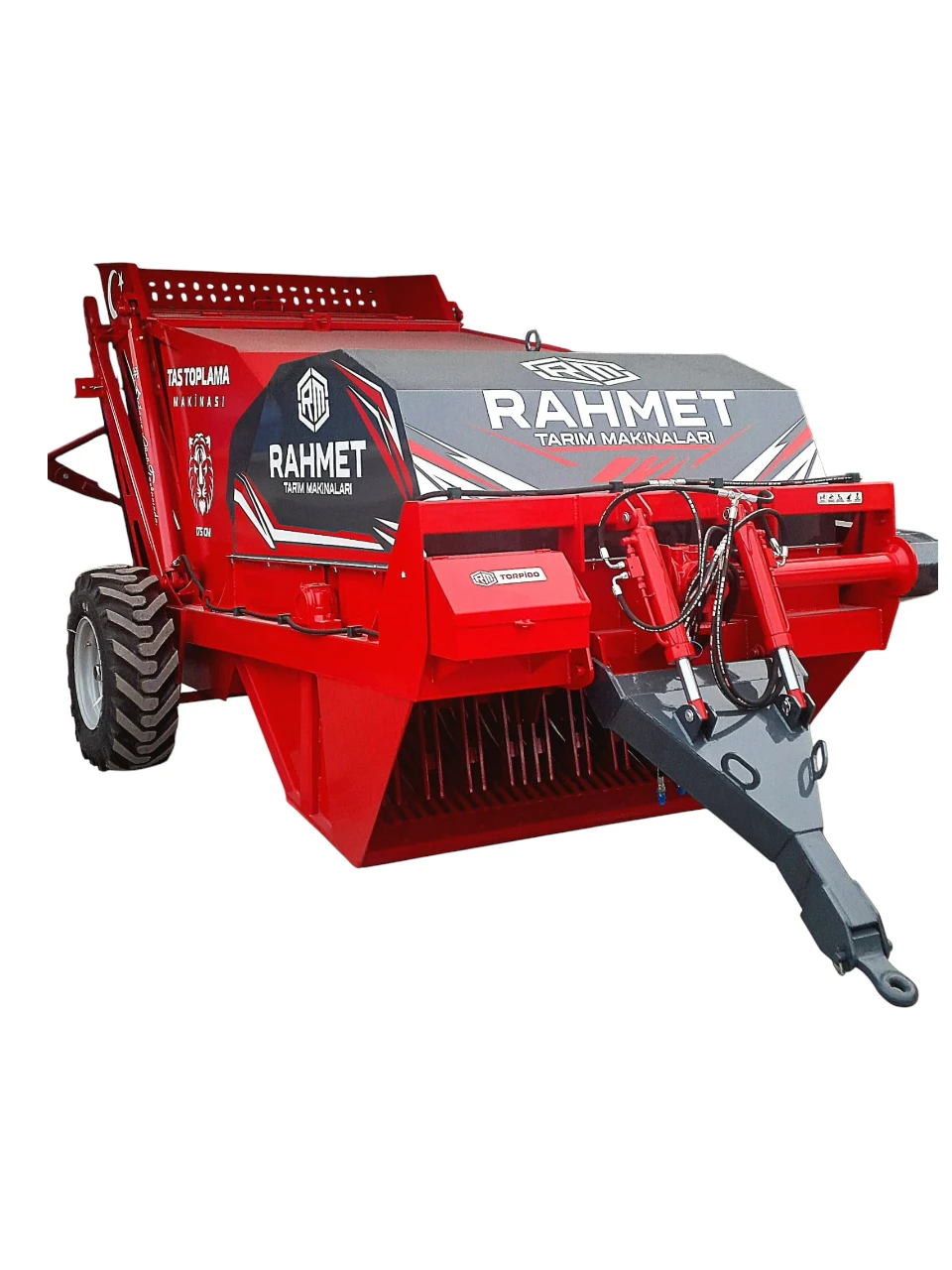

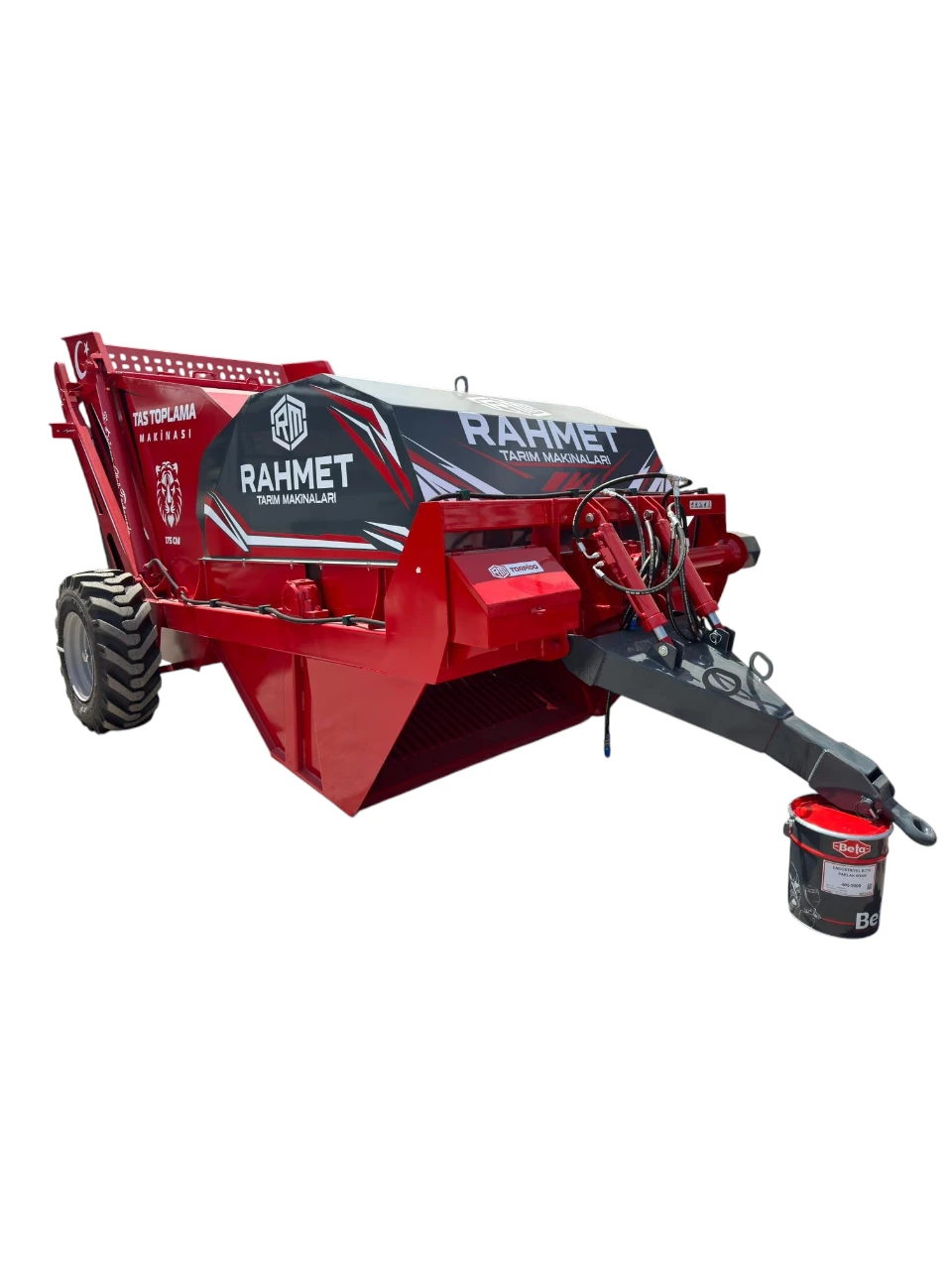

Taş Toplama Makinesi 175cm Ağız Genişliği 6 Ton Kapasiteli
Taş Toplama Makinesi 175cm Ağız Genişliği 6 Ton Kapasiteli
Profesyoneller için Taş Toplama Makineleri
Turkish Supply Co. Güvencesiyle!
Tarladaki verimliliği şansa bırakmayın.En ağır arazi şartları için tasarlanmış, yüksek kapasiteli ve tam profesyonel teknik özelliklerle donatılmış taş toplama çözümümüzle tanışın.
Öne Çıkan Teknik Veriler:Kapasite & Güç: 6000 kg (2,3 $m^3$) depo kapasitesi ve minimum 80 HP güç gereksinimi.
Çalışma Aralığı: 1750 mm genişlikte ağız,
300 mm derinliğe kadar etkili temizlik.
Hassasiyet: 30 mm ile 400 mm arasındaki tüm taş çaplarında yüksek performans.
Dayanıklılık: 48 adet özel bıçak yapısı ve paletli hareket sistemi.
İlgili ürünler
Ara Çapa Makinesi (Yaylı Kültivatör)
The row-spacing spring-bladed hoeing machine is used to eliminate weeds between rows of planted crops (such as beet, beans, sunflower, maize, soybean, tomato, beans, melon, and watermelon, etc.) and to loosen the soil. Additionally, it facilitates better incorporation of fertiliser into the soil. These processes accelerate plant growth.
The hoeing machine is adjustable between rows. During hoeing, plant protection discs (star blades) prevent the soil from covering the plants when they are small. Thanks to its leg structure, it can be used easily even on stony terrain.
The soil depth setting of each unit can be adjusted according to the size of the plant to be hoed. Thanks to the units, each of which moves independently, guide discs prevent the machine from deviating and disrupting its direction of movement while maintaining the working depth on uneven terrain, allowing hoeing without damaging the plant even on sloping terrain.
Çekilir Tip Güçlendirilmiş Offset Diskaro
A wheeled offset disc harrow with a lift mechanism is a soil cultivation machine used to prepare the seedbed by breaking up clods and mixing the soil after ploughing.
After harvesting, various operations such as cutting and shredding plant residues and weeds, and breaking up the crust layer can be performed with pull-type wheeled offset disc harrows. Their most significant advantage among secondary soil cultivation tools is that they can be used within a wide range of soil moisture levels.
Model ÇLTD offset disc harrows prevent wind and water erosion while breaking up stubble due to their hydraulic system and versatile movement capability. The mechanism on the wheel ensures that the wheel stays at ground level, allowing the working depth to be effectively adjusted.
Diskli Pulluk (ADP)
The disc harrow is a suspended soil cultivation machine primarily used for soil preparation in preparing the seedbed after harvest, attached to the tractor with a three-point linkage system.
Disc harrows operate with the discs rotating in the working position, so they do not get stuck on obstacles. In sandy and stony fields, disc wear is less than that of mouldboard ploughs. As they operate by rotating, they do not require excessive traction power from the tractor and do not strain it. It is a machine with simple settings and easy operation.
Advantages of using a disc plough:
*In moist soils worked with disc ploughs, the wavy structure of the furrow bottom prevents mud formation in the soil.
*The concave structure of the discs breaks up the soil more effectively, preventing clod formation.
*As the discs operate by rotating, they easily overcome obstacles such as stones and hard plant roots, preventing potential breakdowns and blockages.
*As the force distribution related to soil resistance is spread over a wide surface area on the discs, they are resistant to high forces in terms of strength and are not easily damaged.
*As the edges of the discs are sharpened from the outside, they rub against the sharp edge of the plough wall during operation and gradually sharpen themselves over time.
Döküm Merdane (Copyroll)
COPYROLL rollers are designed for pre-sowing soil preparation, particularly in heavy and dry conditions.
COPYROLL rollers are used to level the surface, break up clods and prevent soil compaction.
The machine can also be used after sowing. This process ensures the homogeneity of seed formation and a perfectly flat field, ready for uniform crop formation.
- With its robust machine chassis, it is perfectly suited to heavy terrain conditions.
- Simple transition between the machine's working mode and transport mode
- Stability during transport thanks to the transport axle and low centre of gravity
- COPYROLL high casting quality,
- Ability to perform a wide range of optional adaptations,
- Load from the centre frame to the wings via the hydraulic system for even mass distribution,
- Good displacement and seed-to-soil contact,
- Ensures uniform seed depth, resulting in plants of equal size.
- Combines technical expertise and craftsmanship with innovation, thoughtful design, and rigorous testing.
Vibcom (Tohum Yatağı Hazırlayıcı)
Vibcom is a two- or three-row seedbed preparation machine that combines multiple soil cultivation operations in a single pass at high speed. It is the right choice for warming the seedbed before spring. The choice of machine configuration ensures versatility in use. It is adjustable to a depth of up to 17 cm. It is manufactured in various working widths ranging from 2.5 metres to 8 metres.
The model with three rows of vibrating snake tongues (ideal for clay soils) prefers dense and shallow sowing, allowing the soil surface to warm up and aerate before sowing without mixing the deep soil. The double-row model with 25 cm wide claw shoes achieves an aggressively tilled, fragmented surface layer.
Vibcom ensures a perfectly level area, enabling rapid seedbed preparation and creating the ideal conditions for uniform crop establishment.
