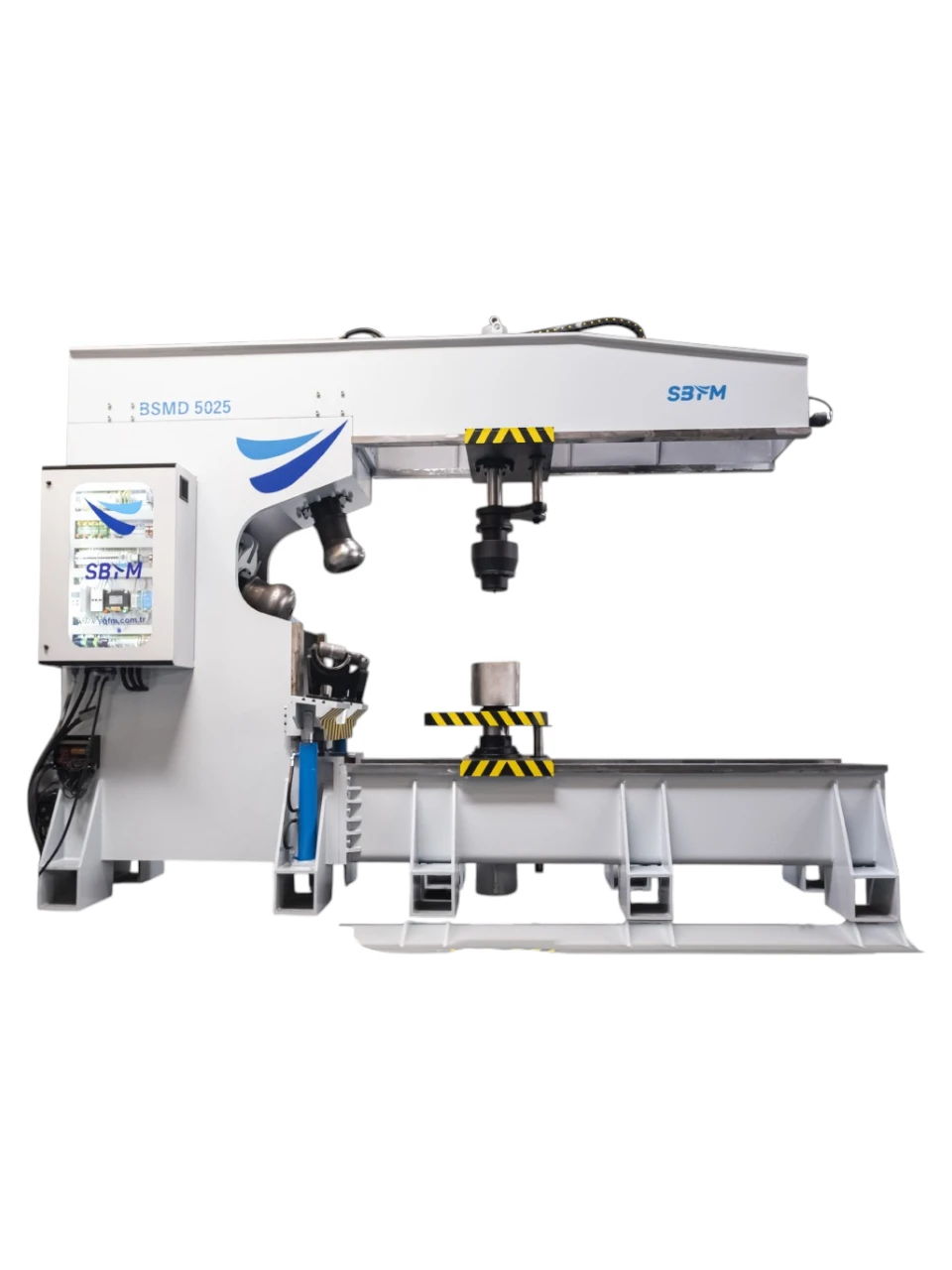

Flanging Machines Without Center Hole - Görsel 2

Click to enlarge

Flanging Machines Without Center Hole

Name: Flanging Machines Without Center Hole - Turkish Supply Co
SKU: BSM-004

Dishing and Flanging Machines (Without Center Hole) is a machine that performs the bending process of its edges without drilling holes into sheet or plates. This machine shapes the edges of metal sheets to provide the desired slope, angle or bending. It is usually developed in the metal processing industry and in accordance with various industrial products.
These machines, which are specially designed for dish-plastering radius construction, have been developed in accordance with the needs of pressure tanks, boilers, food silos, energy plants, petrochemical plants equipment, aerospace and shipyard industries.

Working Principle

Dishing and flanging machines performs the bending process of the metal sheet by using hydraulic or mechanical forces. The basic principle of this machine is to precisely bend the edges of the sheet material to the desired angle or curve. For the machine to work, the sheet is placed between suitable molds and matrices and then the machine bending the edges of the sheet to form the desired shape.

Add to quote

Stok kodu: BSM-004 Kategoriler: Metal İşleme Makineleri

Açıklama

Flanging Machines Without Center Hole

Technical Specifications

• The machine can be adjusted for metal sheets of different thicknesses.
• The desired bending angle or curling can be programmed from the control panel on the machine.
• It can work with hydraulic or mechanical systems.
• There are CNC controlled models that provide high precision.
• Automatic feeding and changing systems increase the processing efficiency.
• Security measures are integrated for the safety of operators.

Sectors Used

• LPG
• LNG
• Fuel Oil
• Food
• Autoclaves
• Reactors

High Precision and Easy Control

Dishing and flanging machines, which can be easily controlled, have the ability to repeat with high precision. Thanks to these features, it provides an important advantage in the industrial production process.

Reliability and Durability

Dishing and flanging machines, which attract attention with their robust structure and precise control capability, offer a reliable solution in industrial bending and curling in a conical shape. It exhibits a long-lasting and effective performance in industrial plants.
Dishing and flanging machines, bending and curling in transactions is an important industrial equipment used for shaping the edges of metal sheets. With its precision machining capabilities and wide range of applications, it increases productivity in the metal processing industry and enables the production of quality products.

Model	Max.Thickness	Max.Thickness (SS-AISI 304-316)	Max.Plate Diameter	Min.Plate Diameter	Max.Flange Radius	Min.Flange Radius	Engine Power	Dimensions (L-W-H)	Weight
	mm	mm	Ømm	Ømm	mm	mm	kW	mm	kg
BISON F3012	12	8	3000	800	300	25	30	4000-1400-3300	9000
BISON F5012	12	8	5000	1000	300	25	30	5000-1400-3300	9500
BISON F3016	16	10	3000	800	400	30	37	4000-1400-3500	10500
BISON F5016	16	10	5000	800	400	30	37	5000-1400-3500	11000
BISON F3020	20	14	3000	1000	500	50	45	5000-1600-3700	13000
BISON F5020	20	14	5000	1200	500	50	45	6000-1600-3700	14500
BISON F3025	25	16	3000	1200	500	50	55	5000-1600-3700	15000
BISON F5025	25	16	5000	1200	500	50	55	6000-1600-3700	16000
BISON F5030	30	20	5000	1400	600	80	75	7000-1700-3800	18000
BISON F5040	40	25	5000	1500	700	100	90	7500-2000-4000	22000
BISON F5050	50	32	5000	1700	800	150	120	7500-2200-4500	32000
