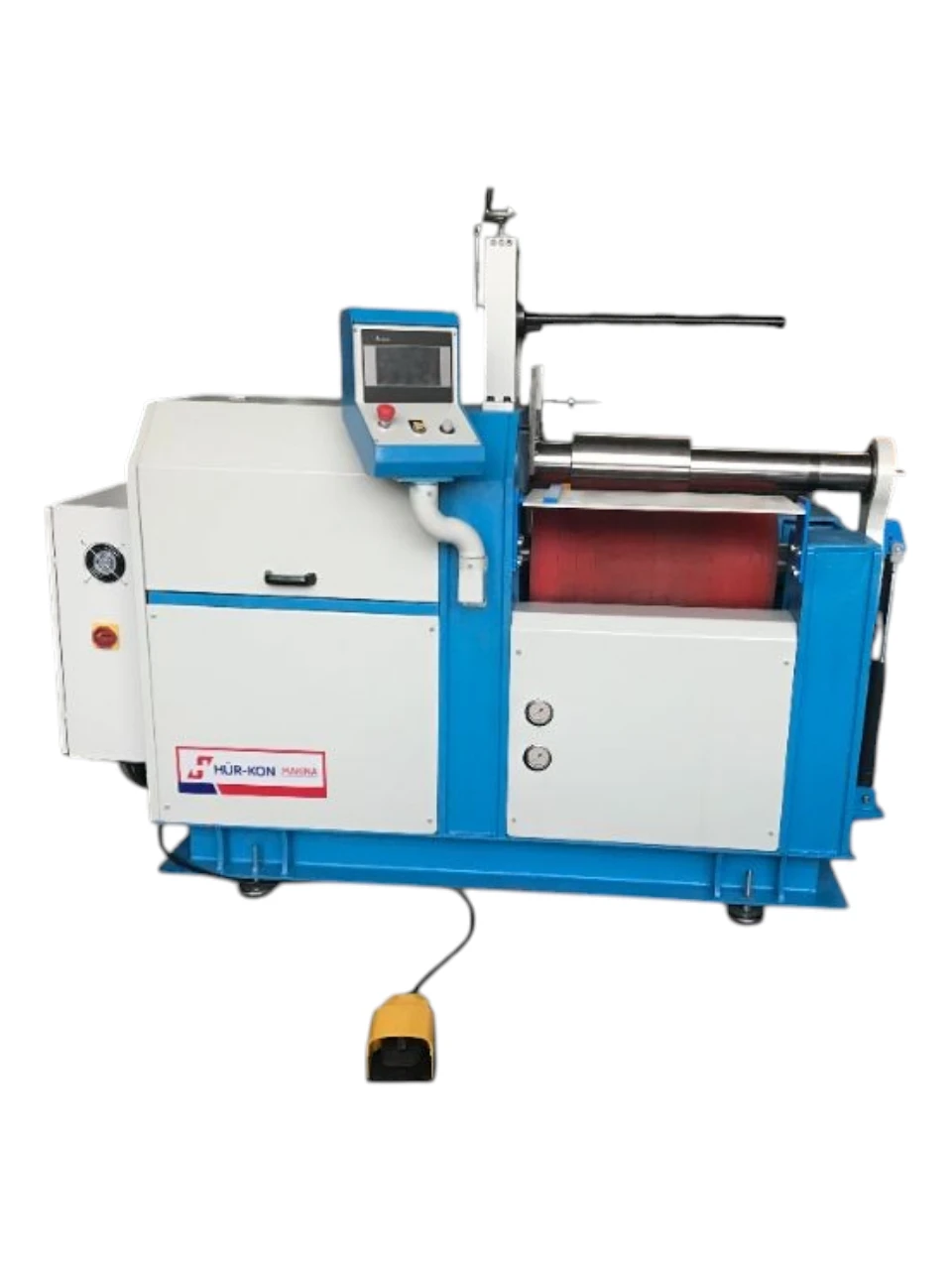

2-Roll Bending Machine
2-Roll Bending Machine
Designed to apply pressure to a flat sheet metal piece; its purpose is to ensure that the manufactured part emerges in a perfect circular shape by bending and forming the sheet using one metal and one rubber roller—a feature that distinguishes it from other machines. This unique design aims to achieve the desired circular shape by applying precise pressure to the flat sheet metal piece.
İlgili ürünler
Circular Welding Machine
Circular Welding Machine
The system is used for the circular welding of the materials with circular form and enables the root welding to come under the area, where the welding process is undertaken. With material and time saving, it increases the efficiency and yield two folds. With the extrusion heads and the pneumatically driven counter-spot welding system, it is possible to extrude the materials with the diameter of 100 mm – 1000 mm with the length of 300 mm – 6000 mm and with the thickness of 1 mm – 10 mm and to undertake precise welding by connecting the extruded materials to single – double torque mechanisms via the speed control settings.
Flanging Machines
Flanging Machines
Hydraulic Profile Punching Parts and Sheet Bending Machine
Dishing and Flanging Bending Machine is the perfect solution for bending the end parts of curved or non-curved lids used in the industry to close the bottoms and ceilings of pressurised or non-pressurised, thin or thick walled, cylindrical metal containers. SBFM Machine we facilitate your production processes with our high quality and durable machines. Perforated Camber Bending and Flanging Machine offers precise and reliable results, increasing your production efficiency.
Flanging Machines Without Center Hole
Flanging Machines Without Center Hole
Dishing and Flanging Machines (Without Center Hole) is a machine that performs the bending process of its edges without drilling holes into sheet or plates. This machine shapes the edges of metal sheets to provide the desired slope, angle or bending. It is usually developed in the metal processing industry and in accordance with various industrial products.
These machines, which are specially designed for dish-plastering radius construction, have been developed in accordance with the needs of pressure tanks, boilers, food silos, energy plants, petrochemical plants equipment, aerospace and shipyard industries.
Working Principle
Dishing and flanging machines performs the bending process of the metal sheet by using hydraulic or mechanical forces. The basic principle of this machine is to precisely bend the edges of the sheet material to the desired angle or curve. For the machine to work, the sheet is placed between suitable molds and matrices and then the machine bending the edges of the sheet to form the desired shape.
Profile and Pipe Bending Machine
Profile and Pipe Bending Machine
Profile and Pipe Bending Machine is used for reshaping profiles and pipes that have a certain shape in desired dimensions. The Profile and Pipe Bending Machine is used to roll the profiles of materials into rings, circles or sections of a circle. It can work in horizontal and vertical working position. Bending Machine for Tubes and Profiles can be used for many bendable materials. These include low-carbon steel, medium to high-carbon steel, stainless steel, aluminum, copper, cast iron, and tubular or rod-formed iron. Profile and Pipe Bending Machine, industrial fields and machinery, safety rails and structures, pulpits on boats, furniture, ship interior and exterior structures, bridge superstructures, aircraft skeleton, automotive chassis, boat and marine skeleton, etc. used in the fields.
