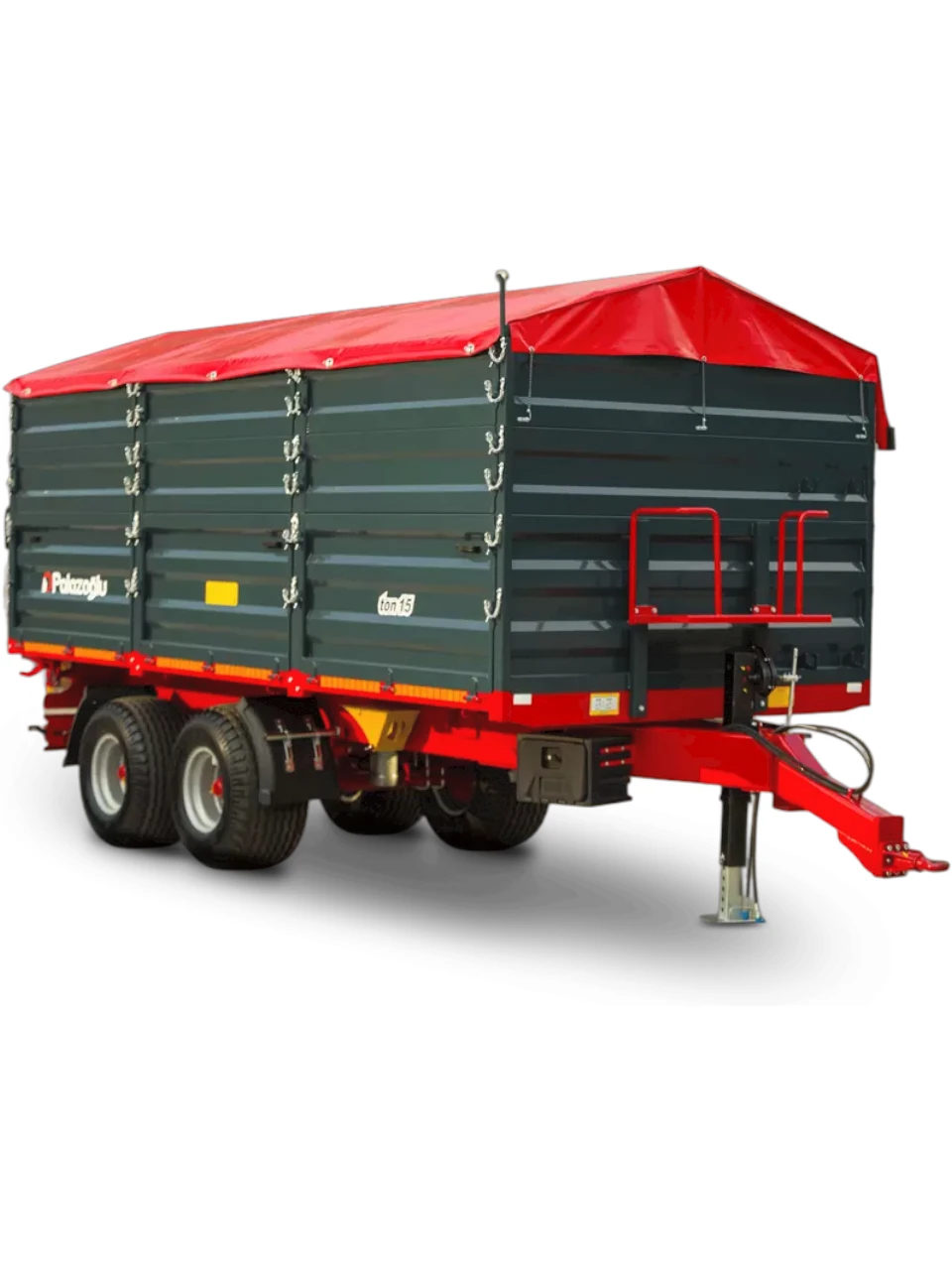

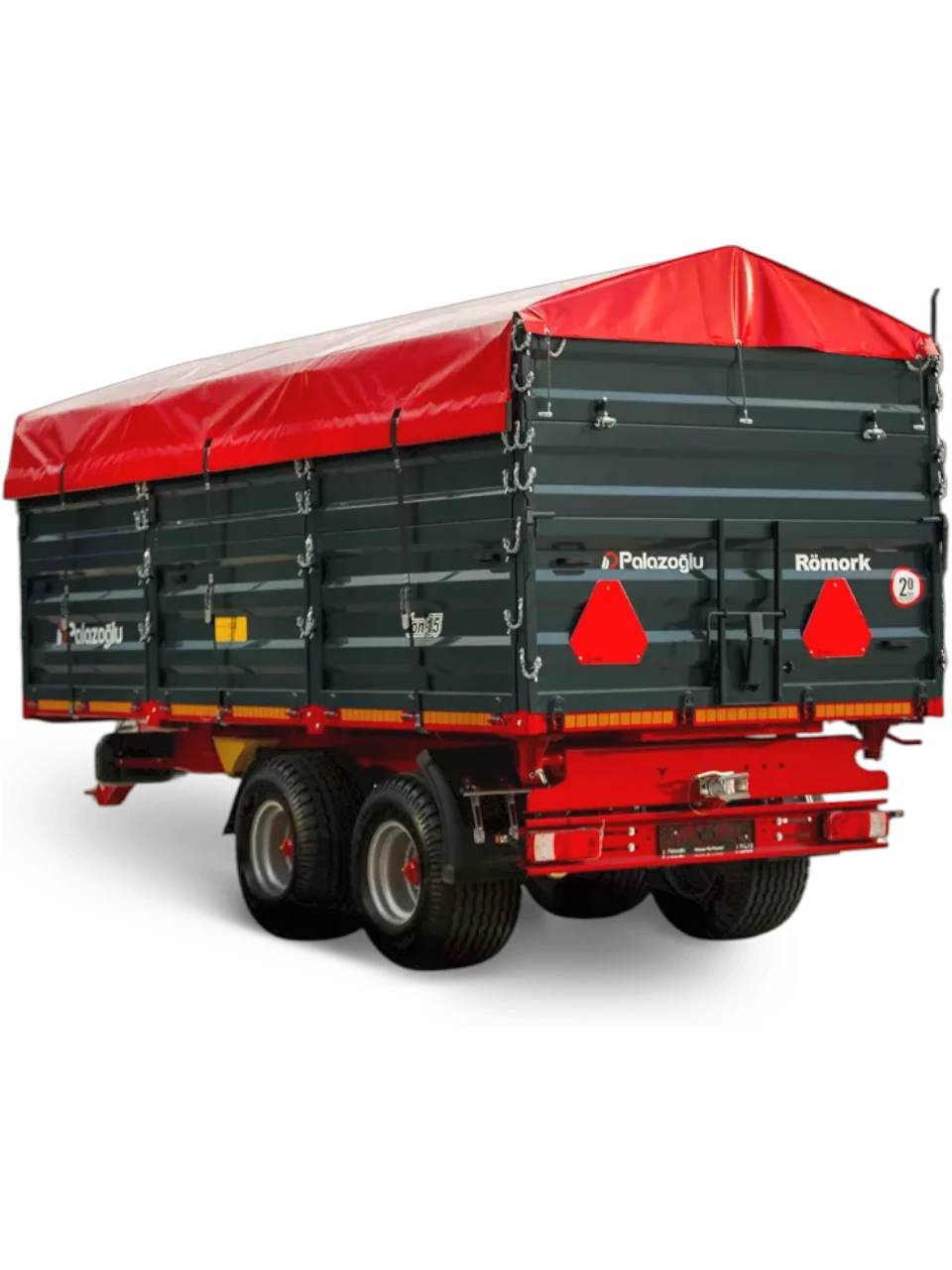

TANDEM AXLE TRAILER

The tandem axle trailer series is designed for versatile agricultural transport with multiple load capacity options. It is available in 6, 8, 10, 12, 15, and 18-ton models to meet different farming requirements.

The 6-ton versions feature a 400 cm body length, 220 cm cabinet width, and 60 cm cover height, with various side extension options such as 35+35 cm or 3×30 cm. Tire options for this model include 12.5/80-15.3 and 400/60-15.5, providing flexibility for field conditions.

The 8-ton models offer a 425 cm body length with similar side height configurations and different tire alternatives for balanced performance. The 10-ton versions come with a 450 cm body length and multiple additional height options including 35+35 cm, 3×30 cm, and 40+40 cm.

The 12-ton Eko and standard 12-ton models provide extended body lengths up to 480 cm and are equipped with 400/60-15.5 or 500/50-17 tires for improved load handling. The 15-ton version reaches a 550 cm body length with 80 cm cover height and 35+35 cm extensions for higher volume capacity.

An 18-ton heavy-duty option with a 600 cm body length and 40+40 cm side extensions ensures maximum capacity and durability. With its strong chassis, flexible side wall configurations, and tandem axle system, this trailer delivers stability, efficient weight distribution, and reliable performance in demanding agricultural operations.

Add to quote
Stok kodu: GBT-013 Kategoriler: Etiketler:
Açıklama
Load Capacity Cash Register Length Cabinet Width Cover Height Additional Height Tyre Size
6 Ton 400 220 60 35 + 35 12,5/80-15.3
6 Ton 400 220 60 35 + 35 400/60-15,5
6 Ton 400 220 60 3×30 400/60-15,5
8 Ton 425 220 60 35+35 12,5/80-15.3
8 Ton 425 220 60 35+35 400/60-15,5
Ten tonnes 450 220 60 3×30 400/60-15,5
Ten tonnes 450 220 60 35+35 400/60-15,5
Ten tonnes 450 220 60 3×30 400/60-15,5
Ten tonnes 450 220 60 40+40 400/60-15,5
12 Ton Eko 470 220 60 35+35 400/60-15,5
Twelve tonnes 480 220 60 40+40 500/50-17
Fifteen tonnes 550 230 80 35+35 500/50-17
Eight tonnes 600 230 80 40+40 435/50-19,5
18 Ton Tridem 600 230 80 40+40
