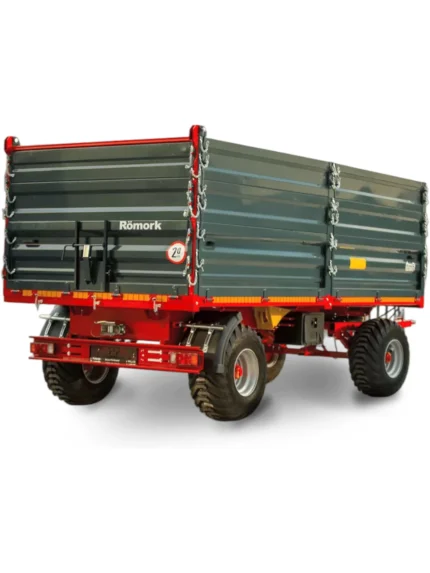

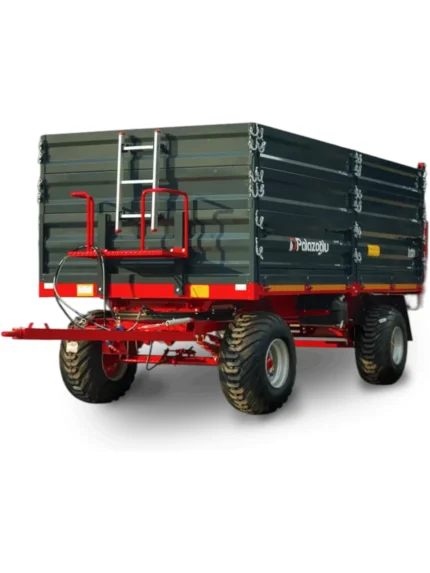

TWIN AXLE TRAILER
TWIN AXLE TRAILER
Back to products
POOL TYPE TIPPER TRAILER 18/20/22/24/26/28/30/32m³
POOL TYPE TIPPER TRAILER 18/20/22/24/26/28/30/32m³

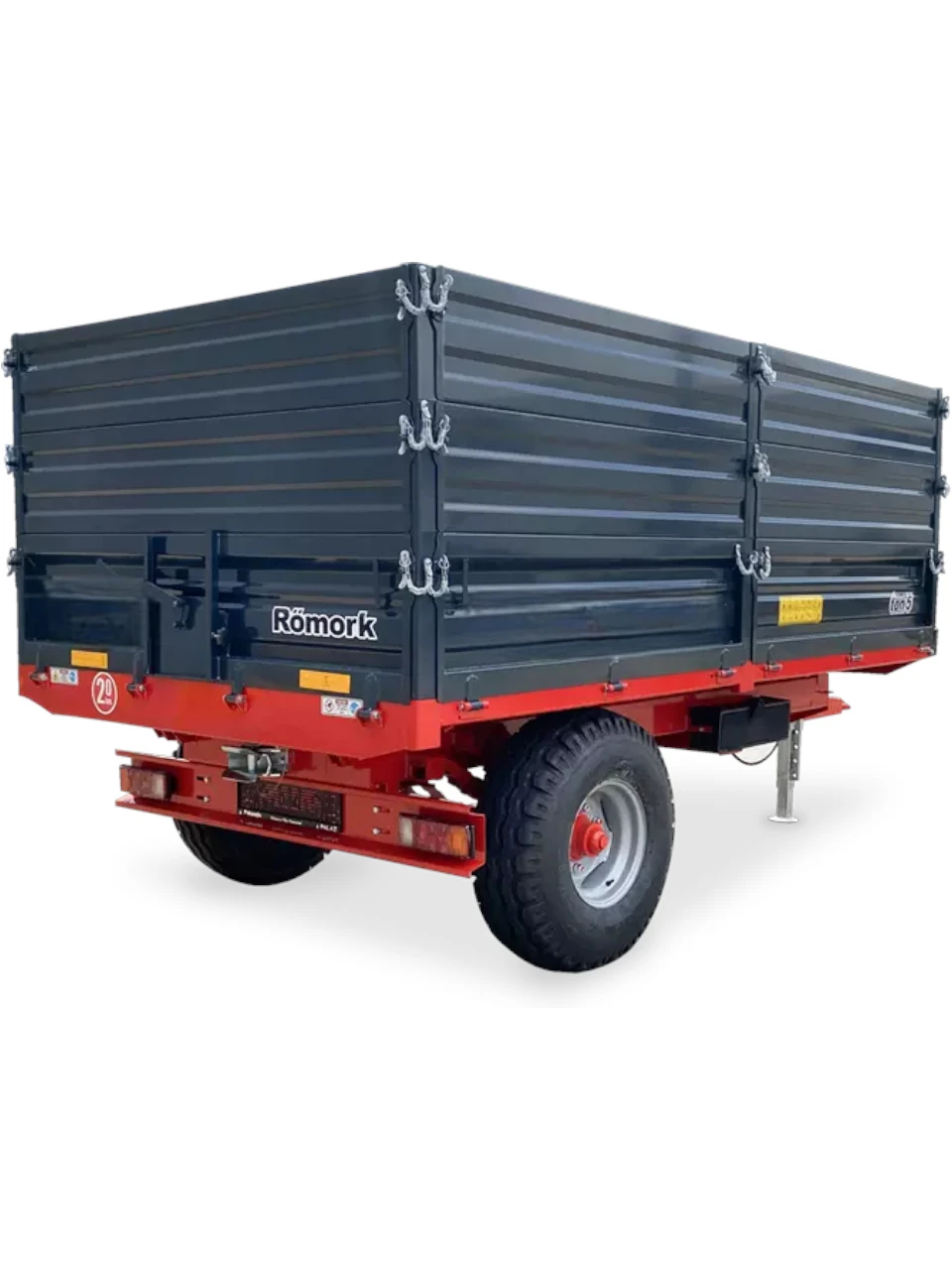

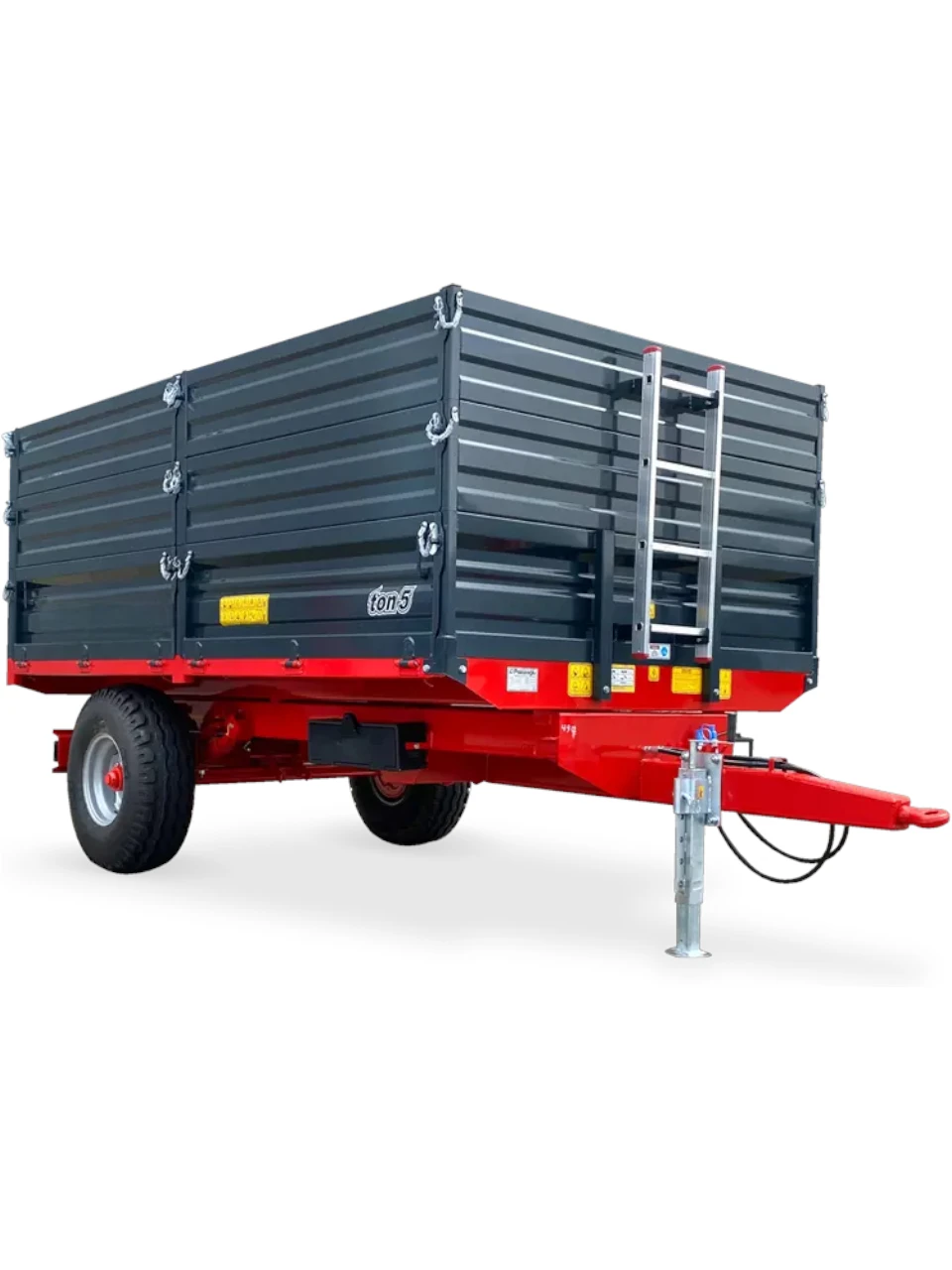

SINGLE AXLE TRAILER

The single axle trailer series is designed for light and medium-duty agricultural transport operations. It offers a wide range of load capacities starting from 1 ton up to 8 tons, making it suitable for small and medium-sized farms.

The 1-ton and 1.5-ton models feature compact body lengths between 230 cm and 250 cm, ensuring easy maneuverability in narrow field areas. The 2.5-ton versions provide a 270 cm body length with different tire options such as 10/80-12 and 10.0/75-15.3 for improved ground performance.

The 3.5-ton models come with a 300 cm body length, 190 cm cabinet width, and various additional height options including 25 cm, 30 cm, 35 cm, and 25+25 cm extensions. The 4-ton and 5-ton versions offer longer body dimensions up to 350 cm and multiple side height configurations to increase loading volume.

For heavier needs, the 6-ton and 8-ton models provide wider cabinet dimensions up to 230 cm and are equipped with strong tire options such as 400/60-15.5 and 500/50-17. With its durable chassis construction, flexible side wall options, and reliable single axle system, this trailer series ensures balanced weight distribution, easy handling, and efficient performance in daily agricultural transport tasks.

Add to quote
Stok kodu: GBT-015 Kategoriler: Etiketler: ,
Açıklama
Load Capacity Cash Register Length Cabinet Width Cover Height Additional Height Tyre Size
1 Ton 230 140 30 20 10/80-12
One and a half tonnes 250 170 30 20 10/80-12
Two and a half tonnes 270 170 30 25 10/80-12
Two and a half tonnes 270 170 30 25 10,0/75-15,3
Three and a half tonnes 300 190 40 25 Nine hundred by sixteen
3.5 tonnes 300 190 40 25+25 Nine hundred by sixteen
Three and a half tonnes 300 190 40 30 Nine hundred by sixteen
Three and a half tonnes 300 190 40 35 Nine hundred by sixteen
4 Ton 300 190 40 40 Nine hundred by sixteen
4 Ton 330 190 45 25 Nine hundred by sixteen
4 Ton 330 190 45 30 Nine hundred by sixteen
4 Ton 330 190 45 35 Nine hundred by sixteen
5 Ton 350 200 45 25 Nine hundred by sixteen
5 Ton 350 200 45 30 Nine hundred by sixteen
5 Ton 350 200 45 35 Nine hundred by sixteen
5 Ton 350 200 45 35+35 12,5/80-15,3
6 Ton 380 210 50 35+35 400/60-15.5
8 Ton 380 230 60 35+35 500/50-17
