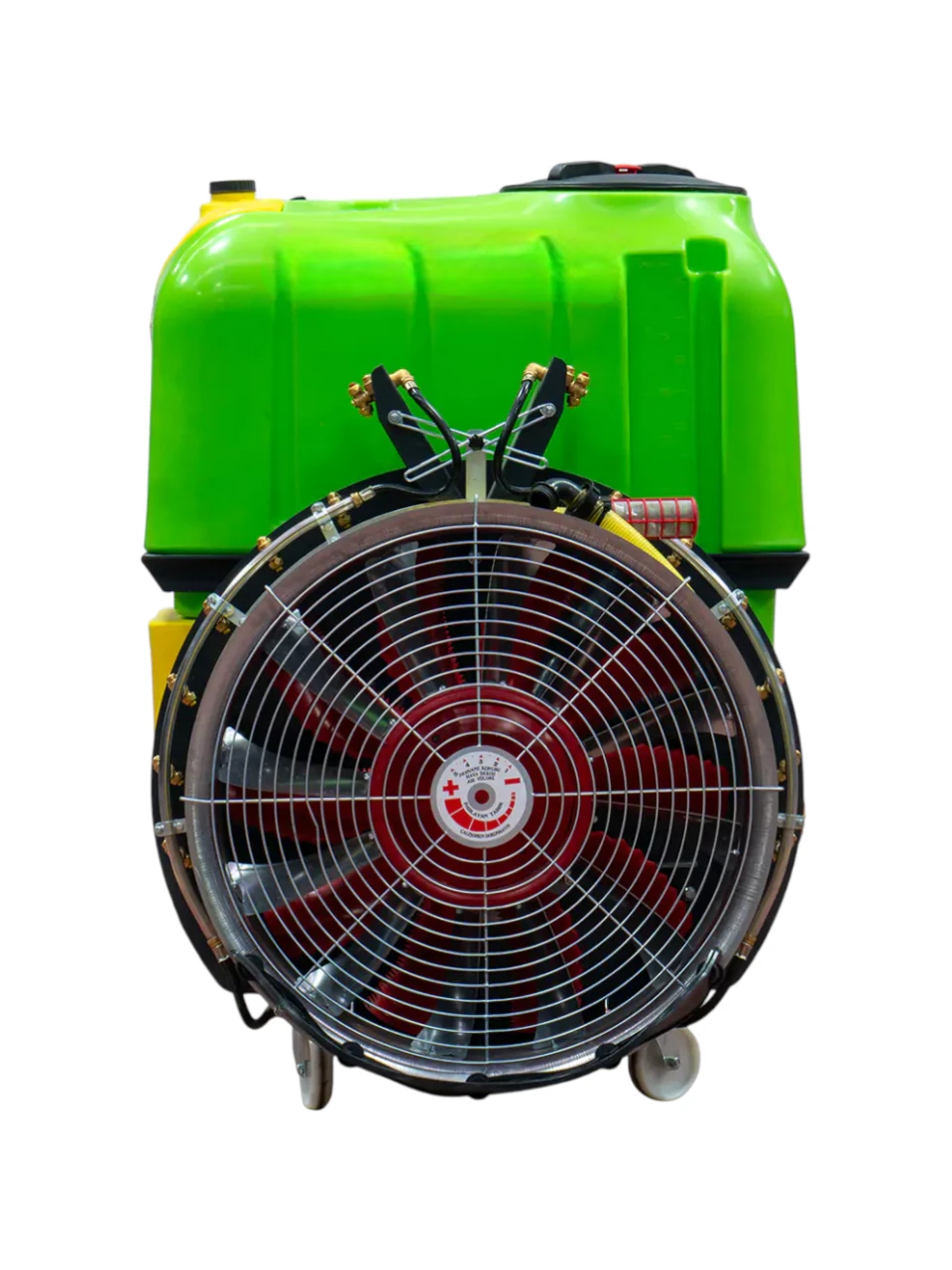

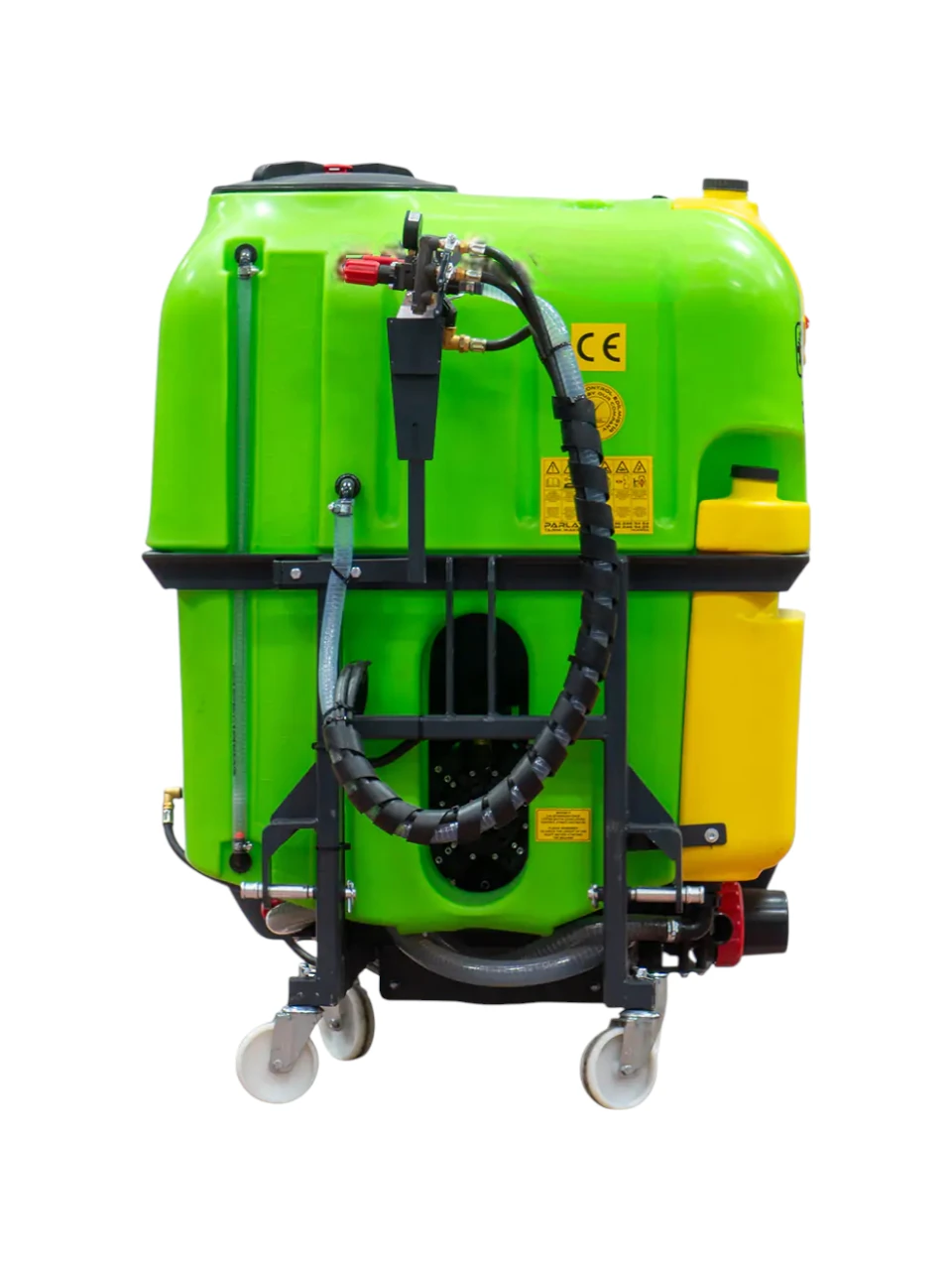

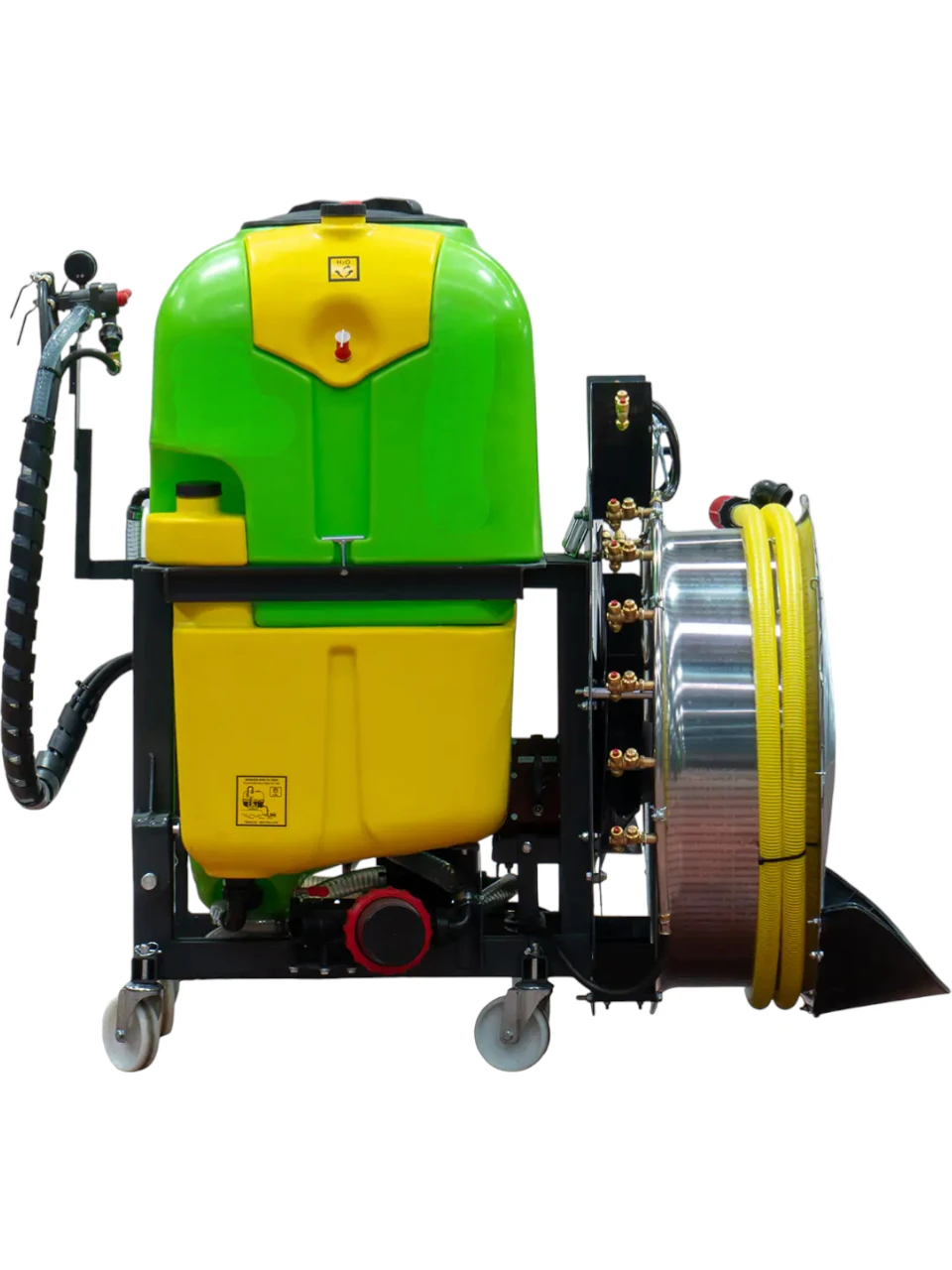

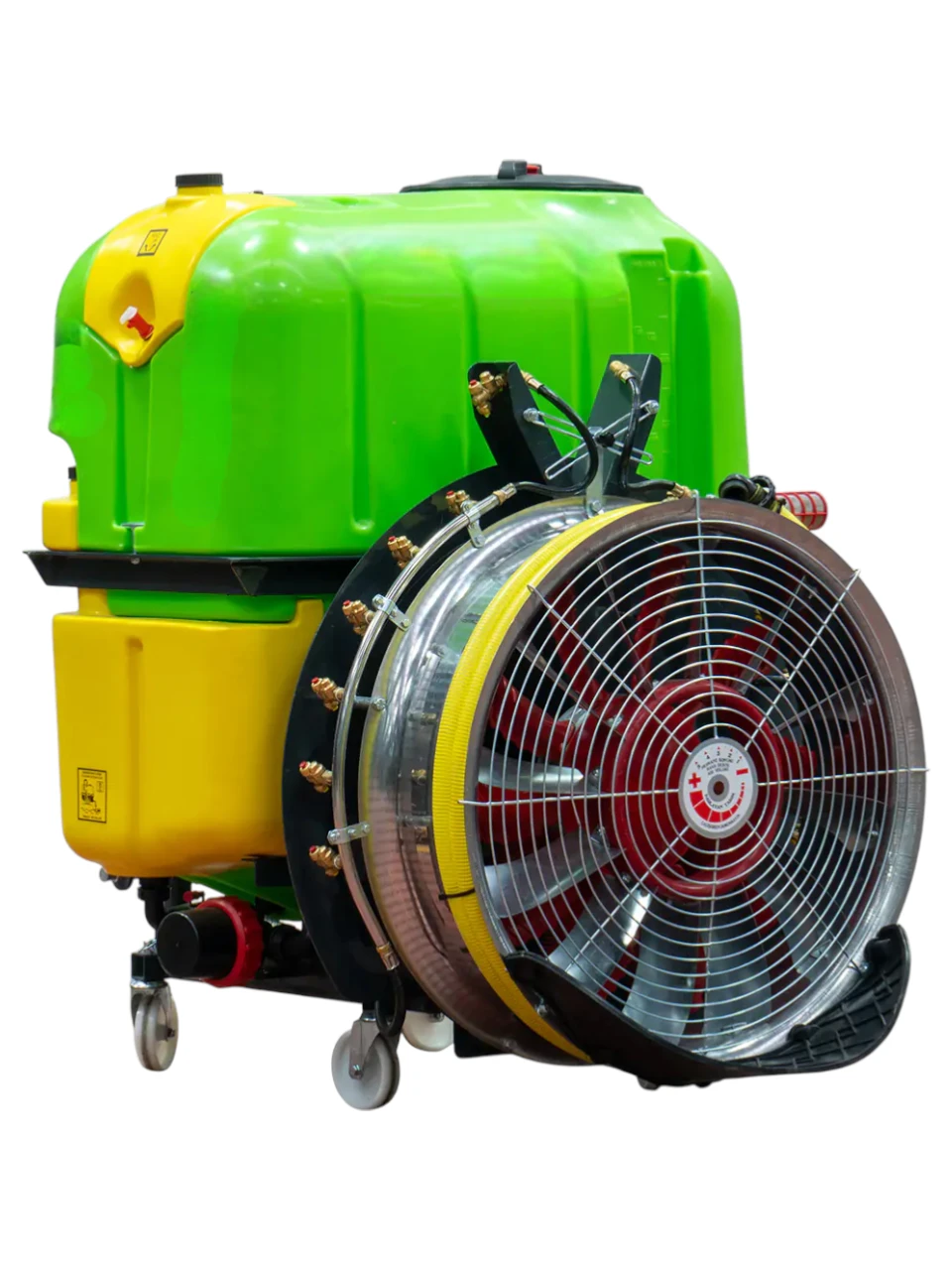

Mounted Type Turbo Atomizer is designed for efficient orchard and vineyard spraying applications. It offers 400, 600, 800, and 1000 liter tank capacity options to meet different agricultural needs. Equipped with the powerful Annovi Reverberi AR 1064 pump, it delivers 50 BAR pressure and 106 L/min flow rate for strong and effective spraying performance. The durable polyethylene tank provides excellent resistance to chemicals and long service life. Featuring 14 brass stopper nozzles, it ensures uniform and precise spray distribution. The silent 10-blade plastic fan with 82 cm (32”) and 90 cm (36”) diameter options provides strong air flow and effective coverage up to 12 meters. Adjustable gearbox transmission system (1-3/5 – 1-4/5) ensures smooth and reliable power transfer. Suitable for tractors starting from 50 HP, this agricultural turbo atomizer is an ideal solution for modern crop protection operations.
Mounted Type Turbo Atomizer 400/600/800/1000lt
₺100,00
Stok kodu:
PLY-012
Kategoriler: FERTILIZING & SPRAYING MACHINES
Etiketler: mounted type turbo atomizer, sprayer
Açıklama
| TANK KAPASİTESİ | ||||
| 400 LT | 600 LT | 800 LT | 1000 LT |
| 600 LT ÖLÇÜLERİ | Genişlik | Yükseklik | Derinlik | Ağırlık |
| 160 CM | 160 CM | 150 CM | 400 KG |
| TEKNİK ÖZELLİKLERİ | |
| Tank Malzemesi | Plastik (Polietilen) |
| Pompa Modeli | Annovi Reverberi AR 1064 |
| Pompa Basınç | 50 BAR |
| Pompa Debi | 106 L/dk |
| Kontrol Ünitesi | VDR – 50 |
| Çalışma Devri | 540 dev/dk |
| Nozzle Tipi | Pirinç Stoper |
| Nozzle Sayısı | 14 |
| Fan Tipi | Sessiz 10 Kanat Plastik |
| Fan Çapı | 82 cm (32″) – 90 (36″) |
| İş Genişliği | 12 Metre |
| Min. Traktör Gücü | 50 HP |
| Aktarma | (1-3/5)-(1-4/5) Ayarlı Şanzıman |
Değerlendirmeler (0)
“Mounted Type Turbo Atomizer 400/600/800/1000lt” için yorum yapan ilk kişi siz olun Yanıtı iptal et
