Mounted Type Italian Hanging Type Straight Arm Water Controlled Field Sprayer is designed for large-scale and professional agricultural applications. It features a durable 1600 liter polyethylene tank and a strong upward folding straight boom structure. Equipped with an Annovi Reverberi AR 145 BP pump and Arag Bravo 180S control unit, it ensures precise water-controlled spraying and stable pressure performance. Hydraulic lifting system allows easy height adjustment, and working width options range from 12 to 21 meters. Suitable for tractors with minimum 120 HP, it delivers efficient and uniform spraying for wide field operations.
MOUNTED TYPE HORIZONTAL FAN TURBO ATOMIZER 600/800/1000L

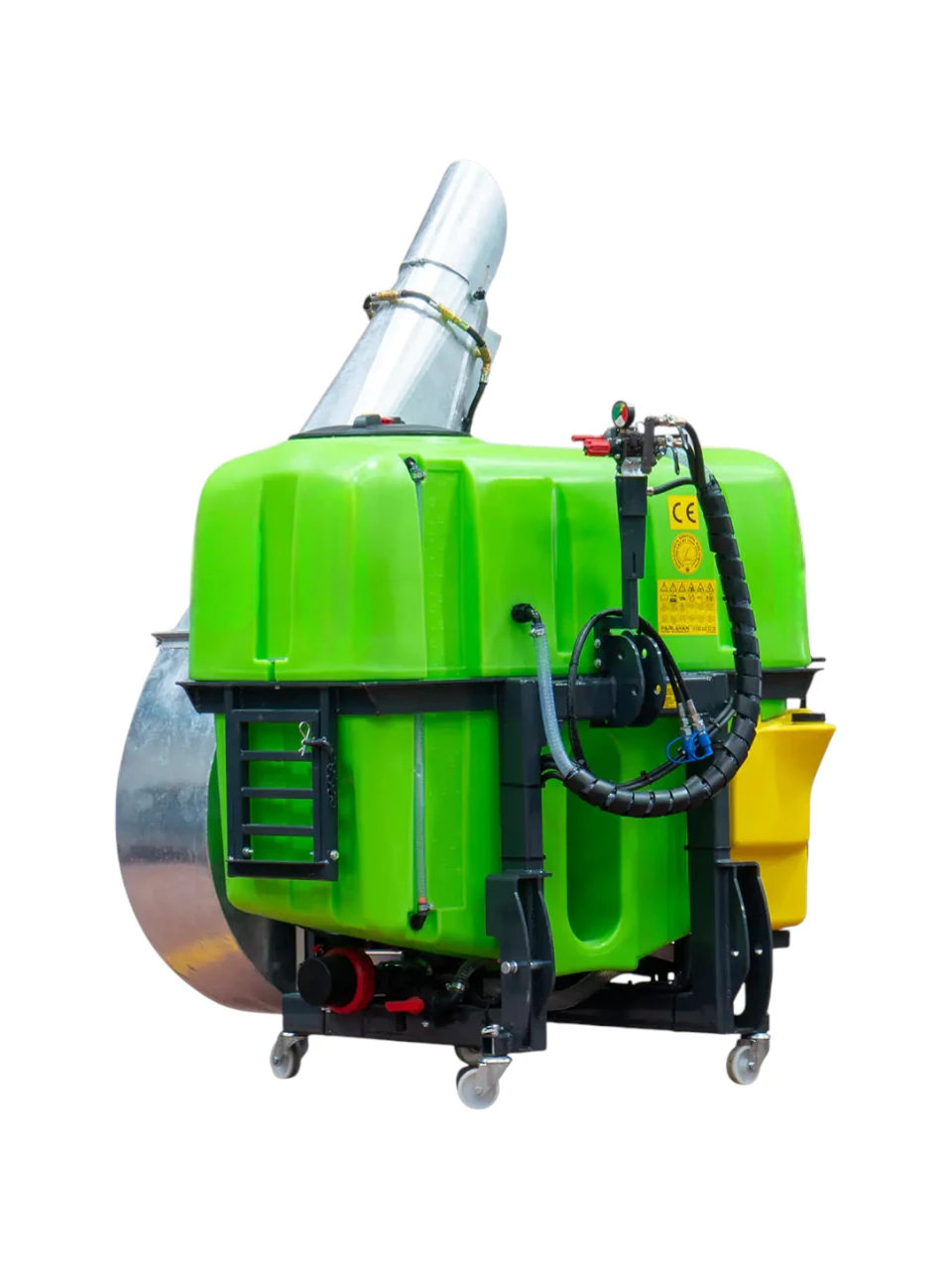

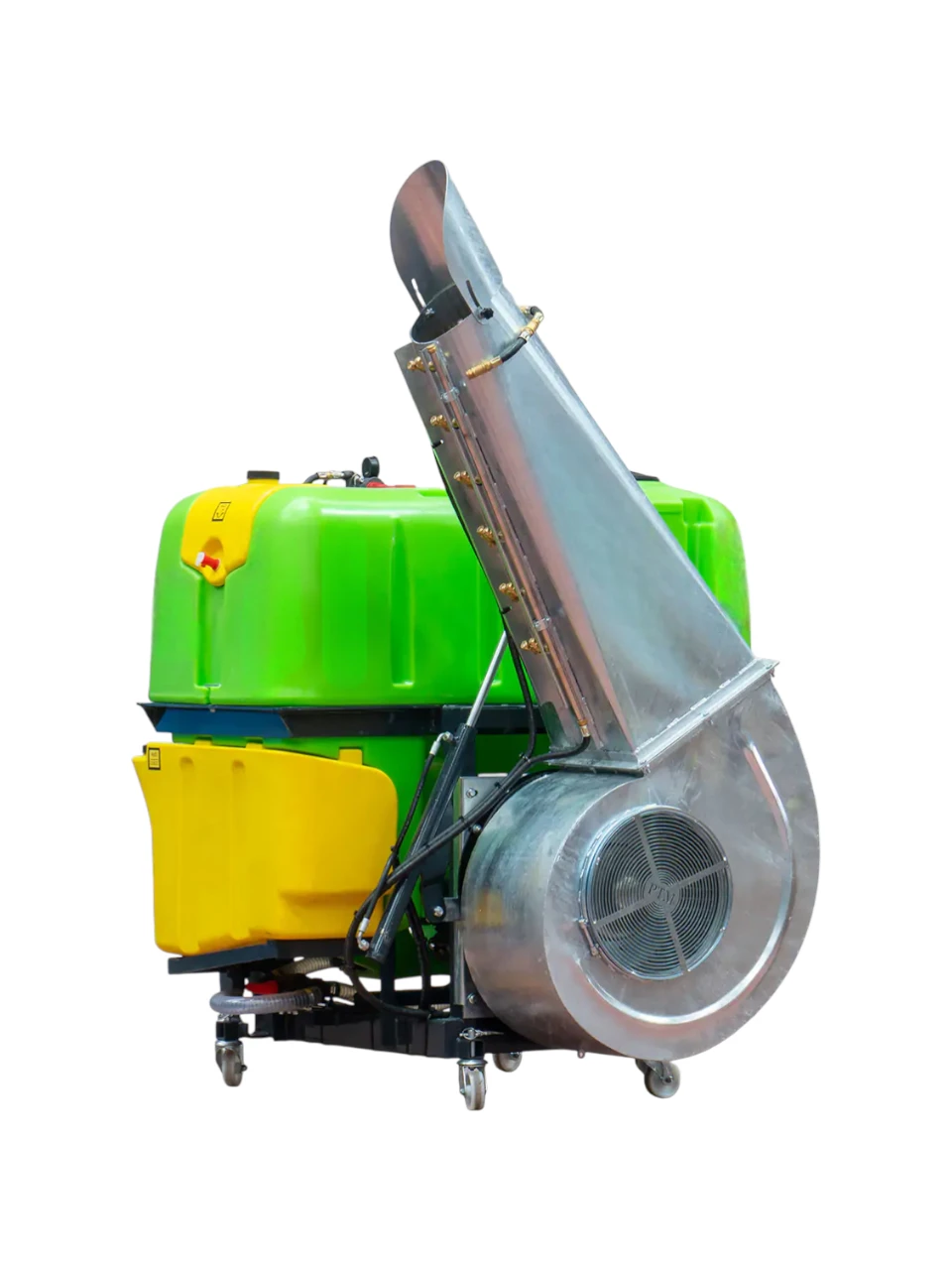

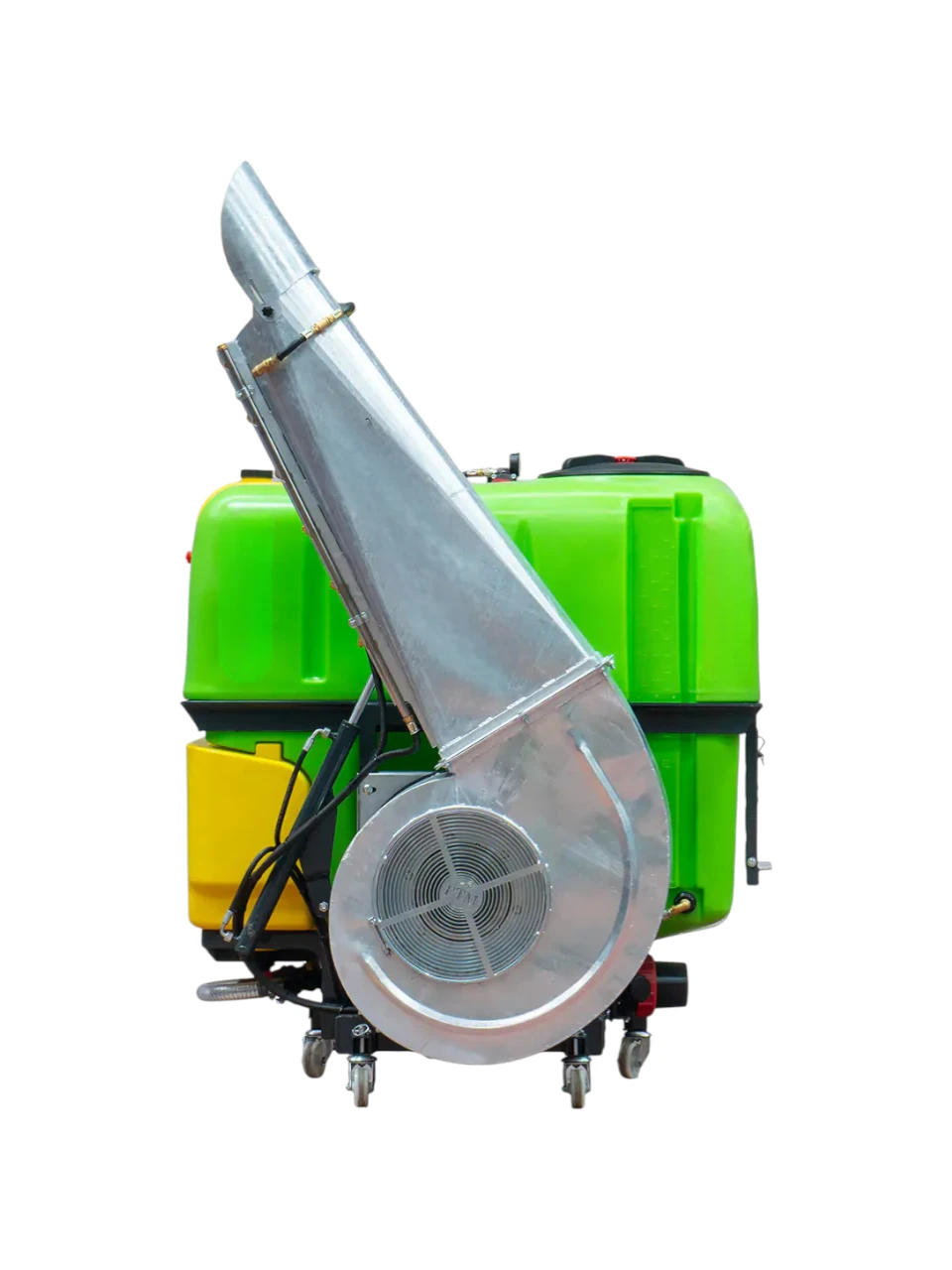

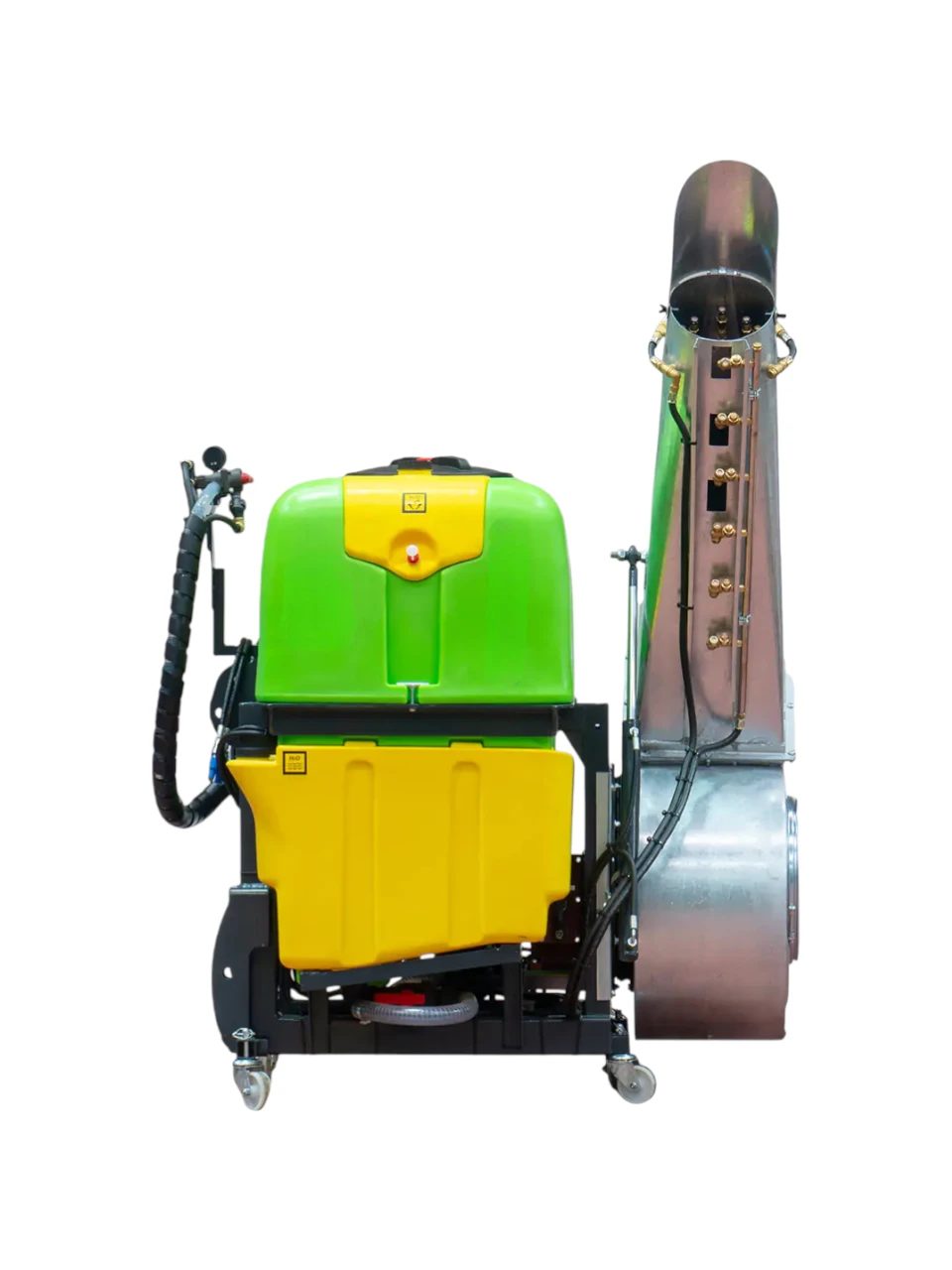

Mounted Type Horizontal Fan Turbo Atomizer is designed for powerful and efficient orchard spraying applications. With 600, 800, and 1000 liter tank capacity options, it offers flexible solutions for different farm sizes. Equipped with the reliable Annovi Reverberi AR 1064 pump, it delivers 50 BAR pressure and 106 L/min flow rate for strong and consistent spraying performance. The durable polyethylene tank ensures long service life and high resistance against agricultural chemicals. Featuring 12 brass stopper nozzles, it provides precise and uniform spray distribution. The horizontal chimney tribune fan system allows effective air circulation and extended spraying reach up to 30 meters. Its adjustable gearbox transmission system ensures smooth power transfer and stable operation at 540 rpm. Suitable for tractors starting from 60 HP, this turbo atomizer is an ideal solution for modern fruit orchards and vineyard crop protection.
Açıklama
TANK CAPACITY
600 L 800 L 1000 L
600 L DIMENSIONS Width Height Depth Weight
160 CM 230 CM 150 CM 420 KG
TECHNICAL SPECIFICATIONS
Tank Material Plastic (Polyethylene)
Pump Model Annovi Reverberi AR 1064
Pump Pressure 50 BAR
Pump Flow Rate 106 L/min
Control Unit VDR – 50
Operating Speed 540 rpm
Nozzle Type Brass Stopper
Number of Nozzles 12
Fan Type Horizontal Chimney Tribune Fan
Fan Diameter –
Working Width 30 Metres
Min. Tractor Power 60 HP
Transmission (1-3/5)-(1-4/5) Adjustable Gearbox
Değerlendirmeler (0)
Shipping & Delivery
Hoşunuza gidebilir…
HANGING TYPE NEW AMAZON X FIELD SPRAYER 1200LT
The New Amazon X Boom Field Sprayer is designed for high-efficiency spraying in large field areas. Its durable chassis structure and balanced X-boom system ensure homogeneous and precise spraying. It offers practical use advantages by allowing easy mounting on tractors. The adjustable boom structure adapts to different field widths. Its modern design offers low pesticide consumption and maximum plant protection performance.
ITALIAN TRAILED TYPE SIDE FOLDING BOOM FIELD SPRAYER 3000LT
Italian Trailed Type Side Folding Boom Field Sprayer is engineered for large-scale agricultural spraying and professional farming operations. Featuring a 3000 liter polyethylene tank, it offers high durability and excellent resistance to agricultural chemicals. Powered by the reliable Annovi Reverberi AR 1604 pump, it delivers 20 BAR pressure and 145 L/min flow rate for strong and uniform spray distribution. The Arag Bravo 180S control unit ensures precise spraying control and efficient liquid management in the field. Equipped with Braglia T-Jet 4-way nozzles, it provides consistent coverage and improved crop protection performance. Its steel side-folding boom structure enhances stability during operation and allows easy transport between fields. Available with 12 and 15 meter working width options and hydraulic lifting system, it maximizes productivity and operational efficiency. Suitable for tractors starting from 60 HP, this trailed agricultural boom sprayer is an ideal solution for modern crop protection and export-focused agribusinesses.
ITALIAN TRAILED TYPE STRAIGHT BOOM FIELD SPRAYER 3000LT
Italian Trailed Type Straight Boom Field Sprayer is designed for high-capacity and professional agricultural spraying operations. With a 3000 liter polyethylene tank, it provides excellent durability and chemical resistance for long-term field use. Equipped with the powerful Annovi Reverberi AR 1604 pump, it delivers 20 BAR pressure and 145 L/min flow rate for strong and uniform spray performance. The brass 5-way control unit ensures reliable liquid management and precise spraying control. Braglia T-Jet 4-way nozzles provide consistent coverage and improved crop protection efficiency. Its profile straight folding boom structure offers 15, 18, and 21 meter working width options for maximum productivity. The hydraulic lifting system allows easy boom adjustment and safe transport between fields. Suitable for tractors starting from 60 HP, this trailed agricultural boom sprayer is an ideal solution for modern farming and export-oriented agribusiness.
İlgili ürünler
DOUBLE DISC HYDRAULIC HORIZONTAL MIXER FERTILIZER SPREADER 1000/1200/1500KG
The double-disc fertiliser spreaders, manufactured as the suspended (hydraulic) type, are attached to the tractor via a three-point hitch system. The spreaders can be manufactured with hydraulic control. Thanks to the hydraulic control lever, fertiliser application at field boundaries is very easy from the tractor cab, and the machine can be closed quickly to prevent unnecessary fertiliser waste. The low-speed horizontal mixer inside the fertiliser hopper ensures homogeneous flow without breaking up or damaging the fertiliser. This ensures that the fertiliser is distributed more homogeneously across the field and flows more smoothly. The machine's fertiliser spreading width can reach 18-36m. The hopper capacity comes in three types: 1000, 1200 and 1500 litres.
INTER-TREE FERTILIZER SPREADER 300/450KG
The centrifugal fertiliser spreader is attached to the tractor via the tractor's three-point hitch system. The machine operates via the tractor's PTO shaft. Fertilisation can be adjusted as required using the adjustment lever. Specially designed outlet nozzles enable fertilisation between fruit trees and vines. There are two types with a tank capacity of 300-500 litres.
ITALIAN TRAILED TYPE X BOOM FIELD SPRAYER 3000LT
Italian Trailed Type X Boom Field Sprayer is engineered for large-scale agricultural spraying and professional farm operations. With a high-capacity 3000 liter polyethylene tank, it ensures durability, chemical resistance, and long-term performance in tough field conditions. Powered by the Annovi Reverberi AR 1604 pump, it delivers 20 BAR pressure and 145 L/min flow rate for powerful and uniform spray distribution. The brass 5-way control unit provides reliable liquid regulation and consistent spraying accuracy. Equipped with brass clamp boom nozzles, it guarantees efficient coverage and reduced chemical waste. The strong steel sheet X-folding boom structure offers excellent stability during operation and easy transport. Available in 12 and 15 meter working widths with hydraulic lifting system, it maximizes field productivity. Suitable for tractors starting from 60 HP, this trailed agricultural boom sprayer is an ideal solution for modern crop protection and export-focused farming businesses.
MOUNTED TYPE GEARBOX TURBO ATOMIZER 400/600/800/1000L
Mounted Type Gearbox Turbo Atomizer is designed for professional orchard and vineyard spraying applications. With 400, 600, 800, and 1000 liter tank capacity options, it provides flexible solutions for different farm sizes and crop needs. Powered by the reliable Annovi Reverberi AR 1064 pump, it delivers 50 BAR pressure and 106 L/min flow rate for strong and consistent spray performance. The durable polyethylene tank ensures long service life and high resistance against agricultural chemicals. Equipped with 14 brass stopper nozzles, it guarantees uniform spray distribution and effective crop protection. The 5-stage plastic fan with 82 cm (32") diameter provides powerful air flow and efficient coverage up to 12 meters. Its adjustable gearbox transmission system (1-3/5 – 1-4/5) ensures smooth power transfer and stable operation at 540 rpm. Suitable for tractors starting from 70 HP, this agricultural turbo atomizer offers high efficiency, durability, and competitive performance for modern farming operations.
MOUNTED TYPE NEW AMAZON REAR FOLDING BOOM FIELD SPRAYER 1000LT/1200LT
Mounted Type New Amazon Rear Folding Boom Field Sprayer is designed for efficient and precise field spraying. It features a durable polyethylene tank with 1000 or 1200 liter capacity options. The strong rear folding boom ensures easy transport and compact storage. Hydraulic lifting system allows smooth height adjustment during operation. It is equipped with a high-performance diaphragm pump for stable pressure and uniform spray distribution. The sprayer provides working width options of 12, 15, and 18 meters. It is compatible with tractors starting from 70 HP. Ideal for wheat, corn, sunflower, and other field crops.
MOUNTED TYPE NEW AMAZON REAR FOLDING WATER CONTROLLED FIELD SPRAYER 1000LT/1200LT
Mounted Type Rear Folding Boom Field Sprayer is designed for professional agricultural spraying applications and modern farm operations. It offers 1000 and 1200 liter polyethylene tank capacity options, providing durability and chemical resistance for long-term use. Powered by the Annovi Reverberi AR 145 BP pump, it delivers 20 BAR pressure and 145 L/min flow rate for strong and uniform spray distribution. The Arag Bravo 180 control unit ensures precise water control and efficient field performance. Equipped with Braglia T-Jet 4-way nozzles, it guarantees consistent coverage across different crop types. The rear folding profile boom system offers 12, 15, and 18 meter working width options for maximum productivity. Hydraulic lifting system allows easy height adjustment during operation and safe transport. Suitable for tractors starting from 70 HP, this tractor mounted boom sprayer is an ideal solution for wheat, corn, sunflower, and large-scale field crops.
MOUNTED TYPE TURBO ATOMIZER 400/600/800/1000LT
Mounted Type Turbo Atomizer is designed for efficient orchard and vineyard spraying applications. It offers 400, 600, 800, and 1000 liter tank capacity options to meet different agricultural needs. Equipped with the powerful Annovi Reverberi AR 1064 pump, it delivers 50 BAR pressure and 106 L/min flow rate for strong and effective spraying performance. The durable polyethylene tank provides excellent resistance to chemicals and long service life. Featuring 14 brass stopper nozzles, it ensures uniform and precise spray distribution. The silent 10-blade plastic fan with 82 cm (32”) and 90 cm (36”) diameter options provides strong air flow and effective coverage up to 12 meters. Adjustable gearbox transmission system (1-3/5 – 1-4/5) ensures smooth and reliable power transfer. Suitable for tractors starting from 50 HP, this agricultural turbo atomizer is an ideal solution for modern crop protection operations.
SQUARE TYPE MANUAL FERTILIZER SPREADER 400/500/600/800KG
The single-disc fertiliser spreaders, manufactured as mounted types, are attached to the tractor via a three-point hitch system. The machine operates via the tractor's PTO shaft. Fertilisation can be adjusted as required using the adjustment lever. Thanks to specially designed outlet nozzles, equal amounts of fertiliser are distributed on both sides. The hopper capacity is available in four variants: 400, 500, 600, and 800 litres.
