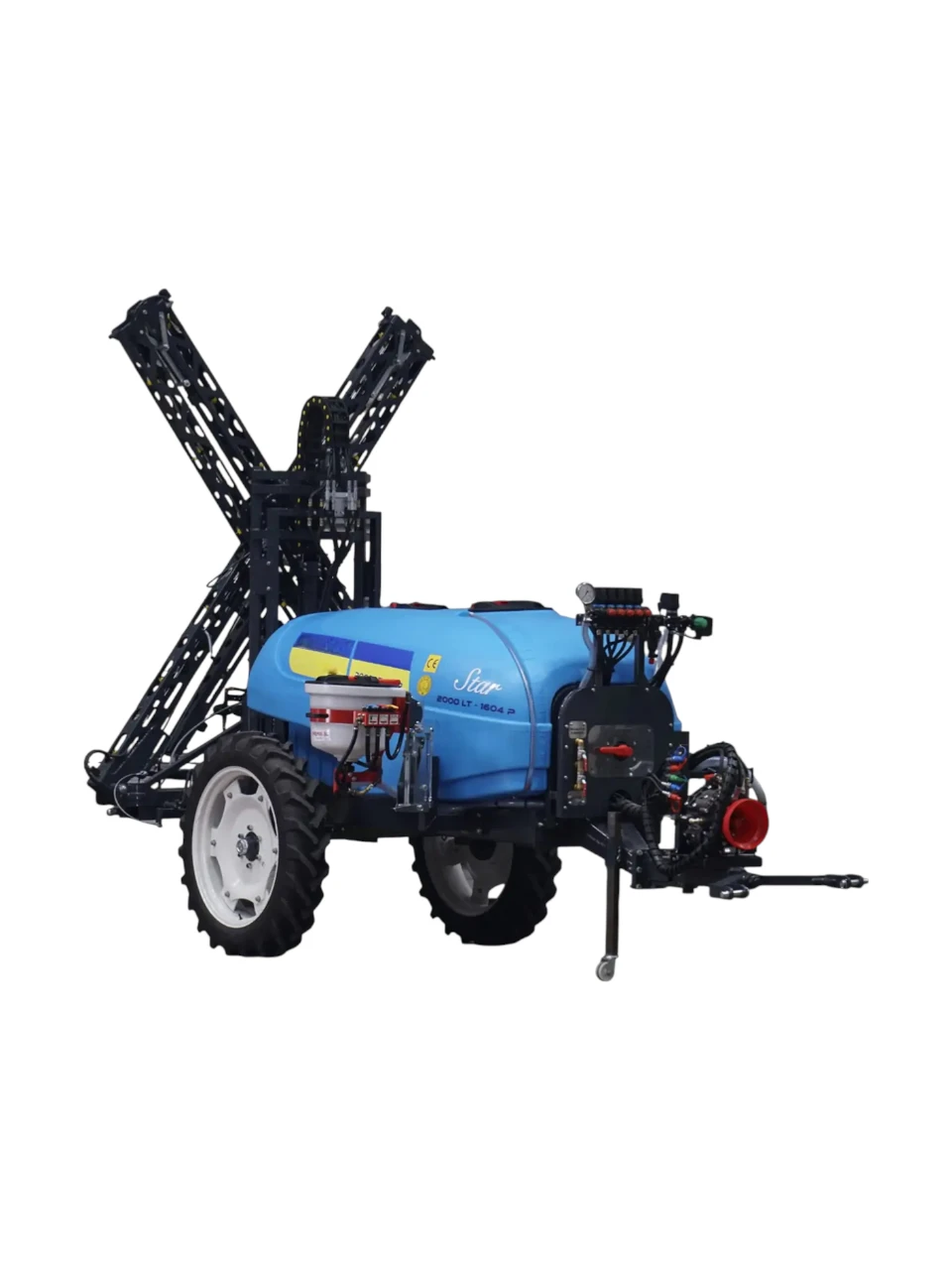

ITALIAN TRAILED TYPE X BOOM FIELD SPRAYER 2000LT
Italian Trailed Type X Boom Field Sprayer is designed for high-capacity and professional agricultural spraying operations. With a 2000 liter polyethylene tank, it offers durability, chemical resistance, and long service life in demanding field conditions. Equipped with the powerful Annovi Reverberi AR 1604 pump, it delivers 20 BAR pressure and 145 L/min flow rate for strong and uniform spray performance. The Arag Bravo 180S control unit ensures precise spraying control and efficient water management. Its steel sheet X-folding boom structure provides stability and reliable operation during field use. Available with 12 and 15 meter working width options, it maximizes productivity in large-scale farming. The hydraulic lifting system allows easy height adjustment and safe transport on the road. Suitable for tractors starting from 60 HP, this trailed agricultural boom sprayer is an ideal solution for efficient crop protection and modern farming needs.
Stok kodu:
PLY-006
Kategoriler: FERTILIZING & SPRAYING MACHINES
Etiketler: italian trailed type x boom field sprayer, pulvarizatör, pulverızer, sprayer
Açıklama
| TANK KAPASİTESİ | ||||
| 2000 LT |
| 3000 LT ÖLÇÜLERİ | Genişlik | Yükseklik | Derinlik | Ağırlık |
| 250 CM | 350 CM | 675 CM | 1800 KG |
| TEKNİK ÖZELLİKLERİ | |
| Tank Malzemesi | Plastik (Polietilen) |
| Pompa Modeli | Annovi Reverberi AR 1604 |
| Pompa Basınç | 20 BAR |
| Pompa Debi | 145 L/dk |
| Kontrol Ünitesi | Arag Bravo 180S |
| Çalışma Devri | 540 dev/dk |
| Nozzle Tipi | Braglia T-Jet Tekli |
| Nozzle Sayısı | 24 (12mt) – 30 (15mt) |
| Kol Tipi | Çelik Saç X Katlanır |
| Hidrolik Yükseltme | Var |
| İş Genişliği | 12/15 Metre |
| Min. Traktör Gücü | 60 HP |
Değerlendirmeler (0)
“ITALIAN TRAILED TYPE X BOOM FIELD SPRAYER 2000LT” için yorum yapan ilk kişi siz olun Yanıtı iptal et
