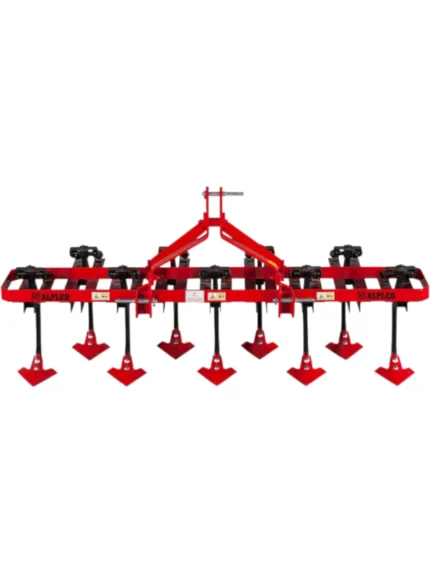

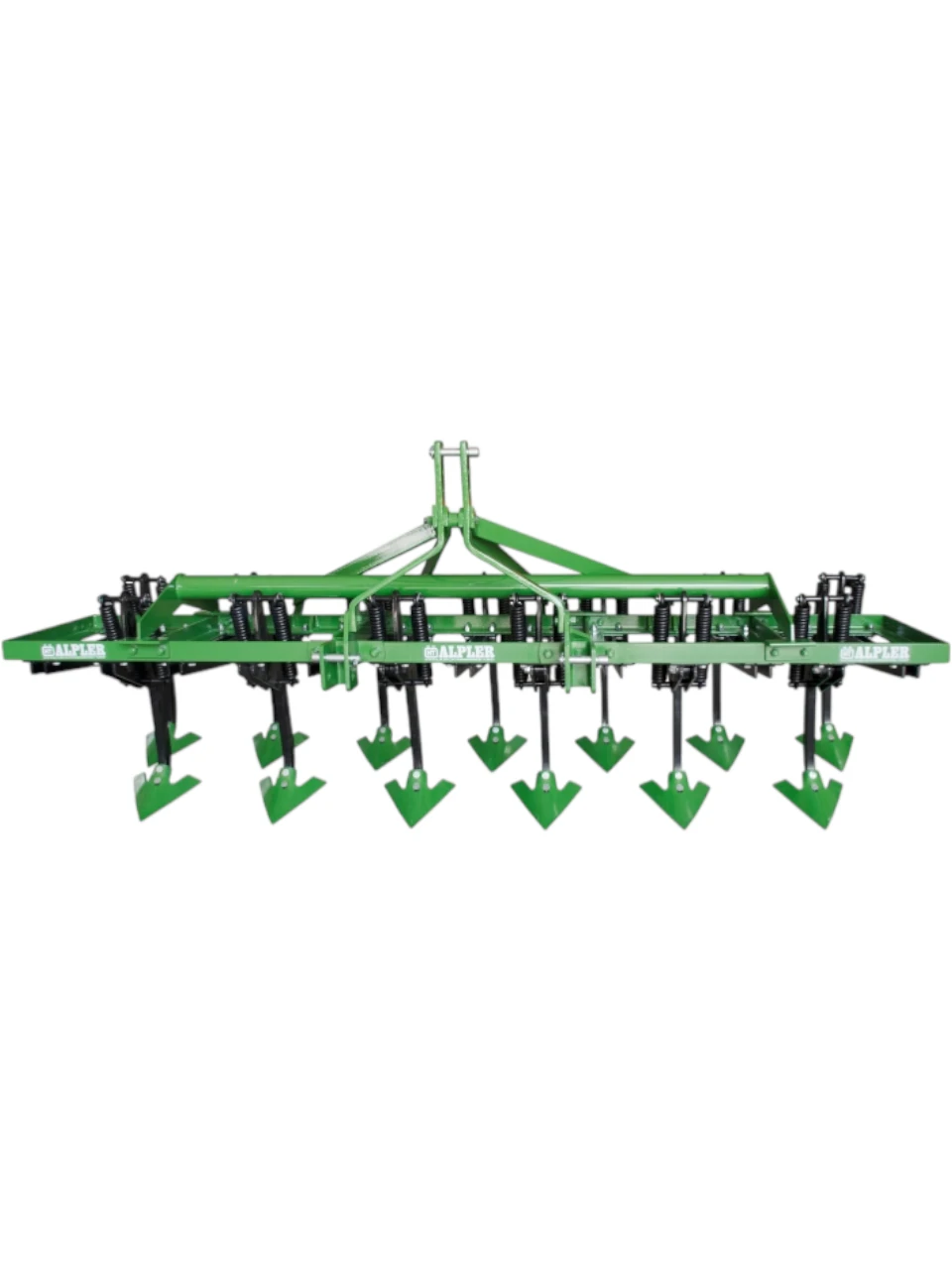

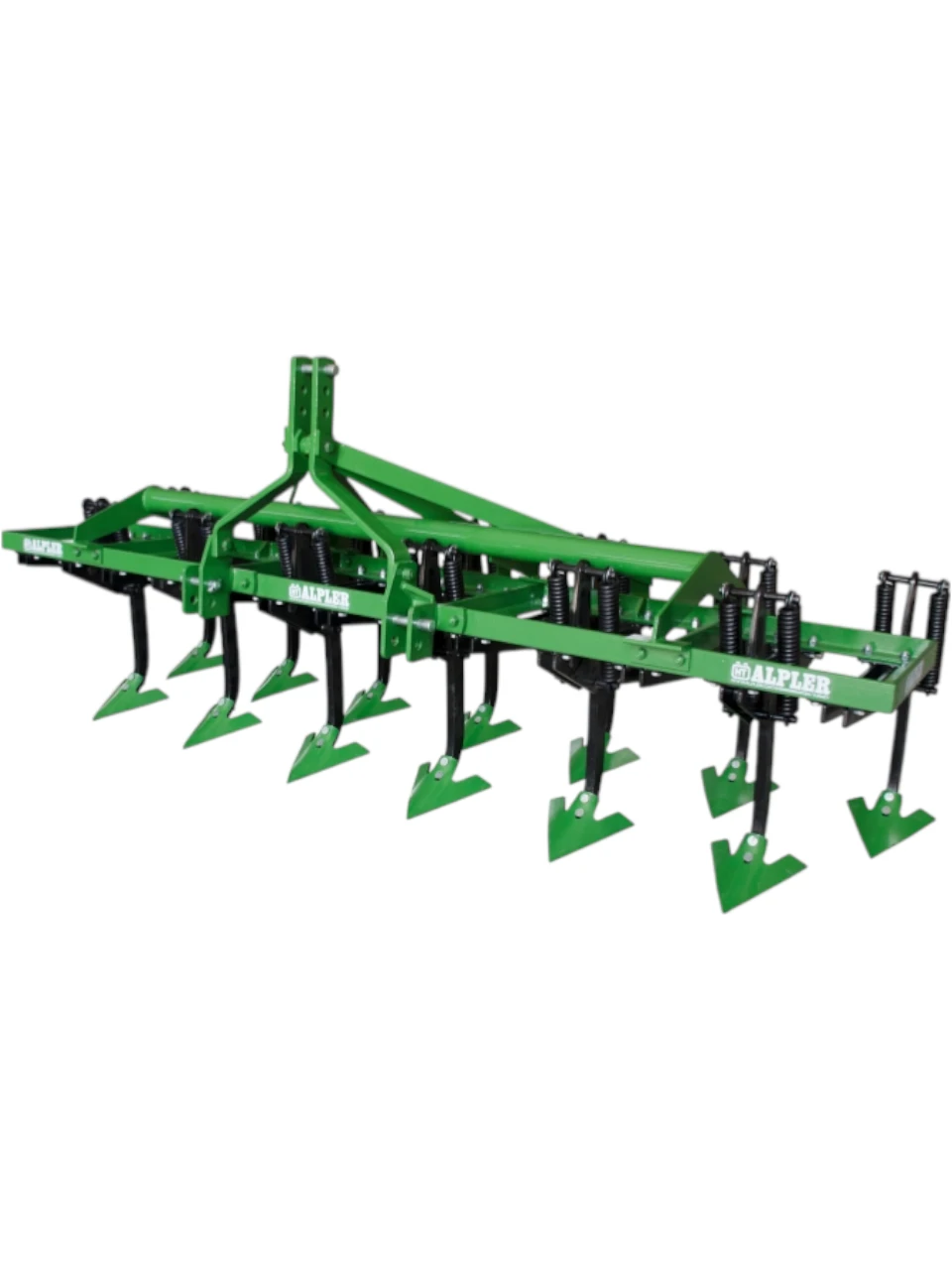

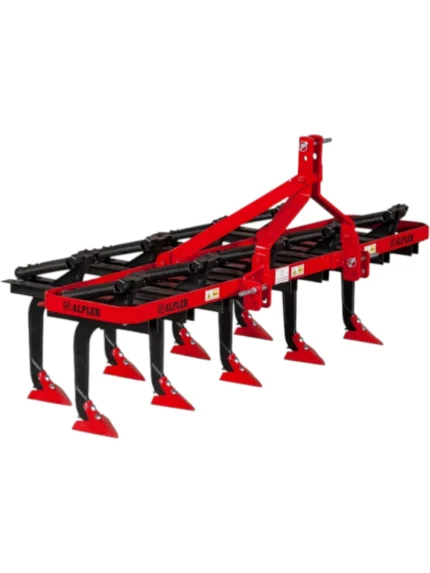

Heavy Duty Spring Cultivator
₺100,00
Hoşunuza gidebilir…
İlgili ürünler
BRANCH CUTTING
It shreds the stalks of plants such as wheat, sunflower, cotton, corn, and rice, as well as tree branches left behind after harvesting in orchards, vineyards, and fields into small pieces, thereby increasing soil fertility.
It prevents yield loss after stubble burning.
It provides long and enjoyable blade usage thanks to its high-strength blades.
The retaining blades placed in front of the roller enable the re-cutting of long pieces.
The branch cutting size can be adjusted thanks to the side rails on the equipment and the height-adjustable roller.
Hydraulic shifting facilitates ease of use in gardens and under trees.
Front guard plates enable easy cutting by laying down long plant stems.
540 rpm PTO; transmission system with 2000 rpm rotor speed.
DISC PLOUGH ADP
The disc harrow is a suspended soil cultivation machine primarily used for soil preparation in preparing the seedbed after harvest, attached to the tractor with a three-point linkage system.
Disc harrows operate with the discs rotating in the working position, so they do not get stuck on obstacles. In sandy and stony fields, disc wear is less than that of mouldboard ploughs. As they operate by rotating, they do not require excessive traction power from the tractor and do not strain it. It is a machine with simple settings and easy operation.
Advantages of using a disc plough:
*In moist soils worked with disc ploughs, the wavy structure of the furrow bottom prevents mud formation in the soil.
*The concave structure of the discs breaks up the soil more effectively, preventing clod formation.
*As the discs operate by rotating, they easily overcome obstacles such as stones and hard plant roots, preventing potential breakdowns and blockages.
*As the force distribution related to soil resistance is spread over a wide surface area on the discs, they are resistant to high forces in terms of strength and are not easily damaged.
*As the edges of the discs are sharpened from the outside, they rub against the sharp edge of the plough wall during operation and gradually sharpen themselves over time.
FOLDABLE V-TYPE OFFSET GOBLE DISCAROV LGD-KV
Hydraulic lift-equipped folding V-type offset disc harrows are trailed machines used to cut and shred crop residues (maize, sunflower, wheat, etc.) and weeds after harvest, and to break up the crust layer.
After harvesting, it prepares the field for direct sowing without the need for another agricultural machine by performing stubble-free soil cultivation during dry months when ploughs cannot be used. In addition to this feature, it can be used for cultivating soil with high moisture content.
The LGD - KV model offset disc harrows move with a hydraulic system and, due to their multi-directional movement capability, prevent wind and water erosion while breaking up stubble. The mechanism on the wheel ensures that the wheel runs at ground level, allowing the working depth to be effectively adjusted.
It has a greater working width than other soil cultivation machines. It is much more economical than other soil cultivation machines because it has a higher working speed and greater working width. Due to these features, fuel, time, labour, maintenance and spare part costs are lower. It reduces the share of soil cultivation in the total cost.
Hydraulic cylinders are used to enable the wings to open and close in working and road positions, allowing tools with a working width greater than three metres to be transported on roads. This enables easy transport in a folded position on roads and narrow transport routes.
LASER LEVELLING MACHINE
Zero, single or double-sloped laser selection option.
High-strength, heat-treated replaceable blades.
Blades designed with the optimal cutting angle for maximum efficiency,
resulting in low pulling force requirements.
All connection points are flanged and lubricated.
Our 3.5, 4, 4.5, 5, 5.5 and 6 metre laser levelling machines offer more balanced and stable operation during levelling thanks to the special side working wheels offered in the system, designed specifically for optional models.
The laser equipment is designed for all kinds of difficult and harsh working conditions
and has a waterproof feature that allows it to operate even under 3 metres of water
.
User manual and film.
All laser equipment is delivered in special cases made of lightweight material that is resistant to impacts and drops.
Easy and quick to set up, durable, laser transmitter stand.
VERTICAL ROTARY TILLER
The vertical rotary tiller uses blades positioned vertically in the soil to perform a circular rotation, breaking up clods on the soil surface, loosening the soil surface, and expanding the inner surface of the soil. It also works by mixing the soil without turning it over, and since the soil surface is evenly distributed during operation, moisture balance is maintained.
It breaks down the stubble remaining on the soil surface after harvest, allowing it to mix easily into the soil.
The blades are made of special steel that has undergone hot rolling, resulting in high wear resistance.
Thanks to the specially designed gearbox (1000 rpm) and the different positions of the rotors, the blades enter the soil slowly even in heavy and compacted soils, thus minimizing power consumption and vibrations.
The spring bearings of the side guards increase the lateral movement of the belts.
Protective hoppers are available to prevent any soil clods, stone fragments, plant debris, hoses, or other obstacles from entering the space between the rotor shafts.
The height-adjustable roller of the vertical rotovators ensures a constant working depth.
Locally produced, robust, powerful, and high-performance vertical rotovators cater to all tractor power levels with various working width options.
