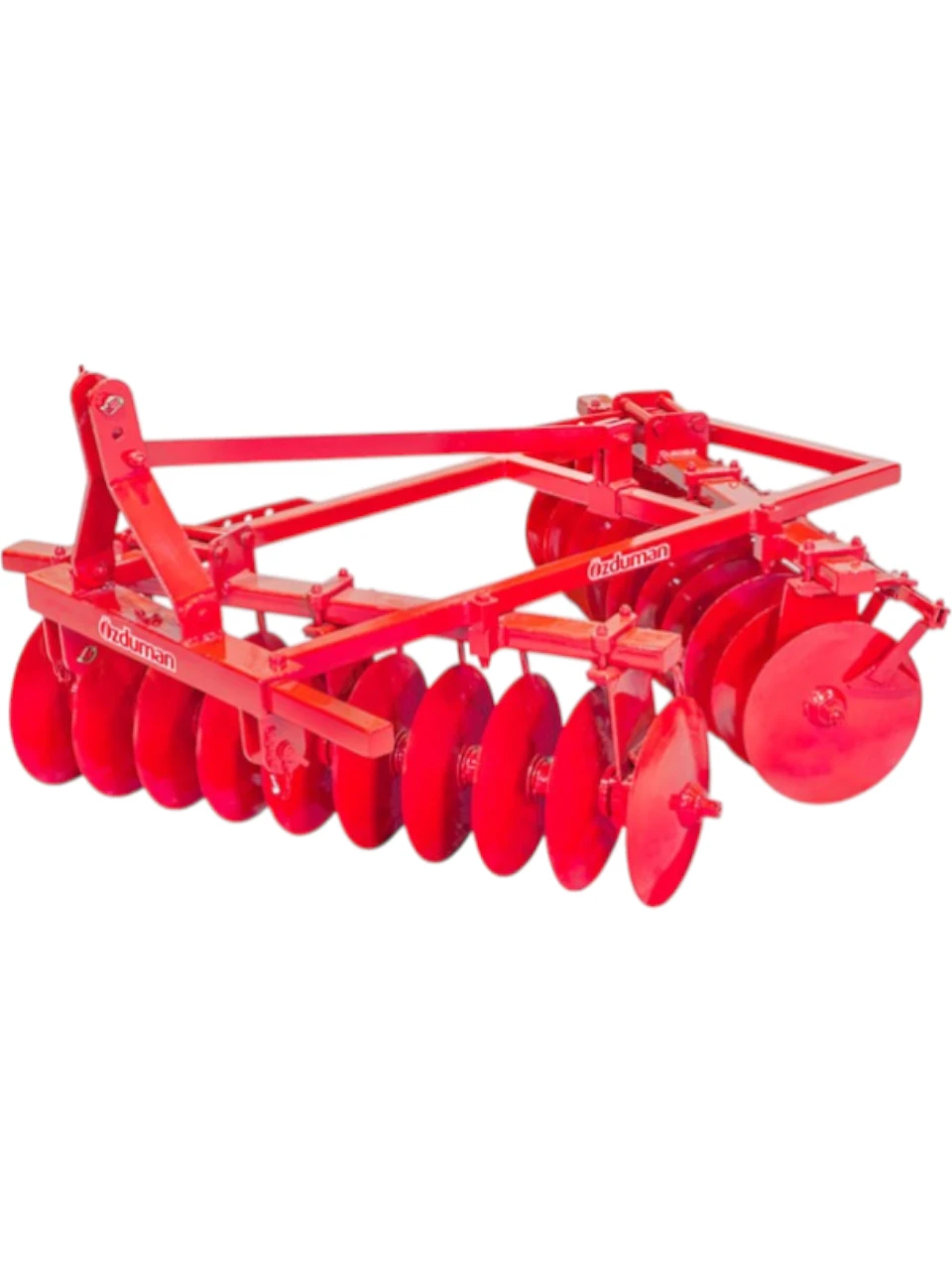

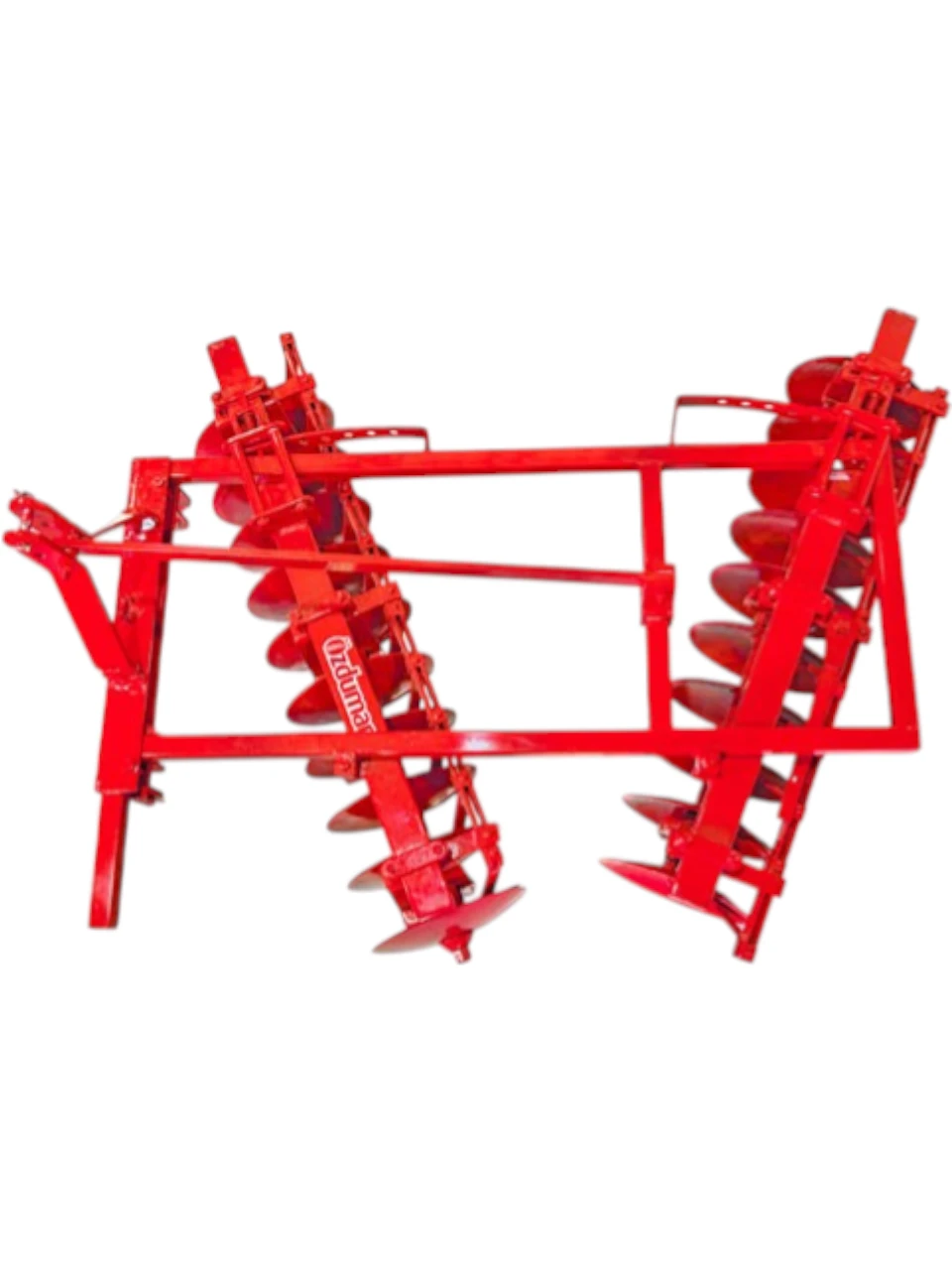

Hanging Type Offset Discarov Aod
₺100,00
The suspended type offset disc harrow is a suspended machine favoured in garden farming and small plots due to its ease of use. The disc direction angles can be easily adjusted on the front and rear batteries.
It is used in secondary soil cultivation, seedbed preparation, inter-tree cultivation in horticulture, weed control, and mixing fertiliser into the soil. It shreds plant stalks and residues left in the field after harvest and mixes them into the soil. It breaks up clods formed in the field after using implements such as ploughs, harrows, and cultivators and loosens the soil.
It is a machine that incorporates organic and inorganic fertilisers into the soil, thereby aerating and loosening the soil and maintaining the balance of the soil’s water and temperature conditions.
Hoşunuza gidebilir…
Disc Plough Adp
The disc harrow is a suspended soil cultivation machine primarily used for soil preparation in preparing the seedbed after harvest, attached to the tractor with a three-point linkage system.
Disc harrows operate with the discs rotating in the working position, so they do not get stuck on obstacles. In sandy and stony fields, disc wear is less than that of mouldboard ploughs. As they operate by rotating, they do not require excessive traction power from the tractor and do not strain it. It is a machine with simple settings and easy operation.
Advantages of using a disc plough:
*In moist soils worked with disc ploughs, the wavy structure of the furrow bottom prevents mud formation in the soil.
*The concave structure of the discs breaks up the soil more effectively, preventing clod formation.
*As the discs operate by rotating, they easily overcome obstacles such as stones and hard plant roots, preventing potential breakdowns and blockages.
*As the force distribution related to soil resistance is spread over a wide surface area on the discs, they are resistant to high forces in terms of strength and are not easily damaged.
*As the edges of the discs are sharpened from the outside, they rub against the sharp edge of the plough wall during operation and gradually sharpen themselves over time.
Spring – Loaded Leg Disk Harrow Sdh
The spring-loaded disc harrow, with its spring-loaded independent disc structure and machine construction, performs a more effective cutting and mixing process than conventional disc harrows, with each disc operating independently thanks to its separate bearing. The springs on each disc prevent breakages and damage to the frame by allowing the discs to move back and forth when encountering an obstacle. It is less affected by the unevenness of the terrain. It causes almost no damage to the levelling of the terrain. In addition, the roller attached to the chassis presses the soil lifted by the discs at the same time, minimising moisture loss after the process. The machine can operate comfortably in heavy clay soils.
Three-Hanger Double Balanced Wheel Vanvey Vny
The Vanvey is a second-class soil cultivation machine. These are tools inserted into the field after ploughing, specifically to prepare a ploughed field for sowing. The process of breaking up the clods created by the plough to make the field surface more suitable for sowing is called double ploughing.
The three-point, dual-balance wheeled Vanvey is a suspended soil cultivation machine used for soil cultivation such as subsoiling and triple tillage in fields that have been left fallow for a year after being ploughed, as well as for breaking up weeds in vineyards, gardens and fields and aerating the soil.
The purpose of using a vanvey is to:
*Prepare the seedbed by breaking up the soil sufficiently.
*Kill weeds in fallow farming methods and preserve moisture accumulation in the soil by preventing evaporation from the soil.
*Break up plant debris on the soil surface and ensure that organic debris in the topsoil layer mixes with the soil.
*To break up the crust layer and sometimes partially compact the soil, thereby creating better soil conditions and accelerating germination.
İlgili ürünler
Branch Cutting
It shreds the stalks of plants such as wheat, sunflower, cotton, corn, and rice, as well as tree branches left behind after harvesting in orchards, vineyards, and fields into small pieces, thereby increasing soil fertility.
It prevents yield loss after stubble burning.
It provides long and enjoyable blade usage thanks to its high-strength blades.
The retaining blades placed in front of the roller enable the re-cutting of long pieces.
The branch cutting size can be adjusted thanks to the side rails on the equipment and the height-adjustable roller.
Hydraulic shifting facilitates ease of use in gardens and under trees.
Front guard plates enable easy cutting by laying down long plant stems.
540 rpm PTO; transmission system with 2000 rpm rotor speed.
Copyroll
COPYROLL rollers are designed for pre-sowing soil preparation, particularly in heavy and dry conditions.
COPYROLL rollers are used to level the surface, break up clods and prevent soil compaction.
The machine can also be used after sowing. This process ensures the homogeneity of seed formation and a perfectly flat field, ready for uniform crop formation.
- With its robust machine chassis, it is perfectly suited to heavy terrain conditions.
- Simple transition between the machine's working mode and transport mode
- Stability during transport thanks to the transport axle and low centre of gravity
- COPYROLL high casting quality,
- Ability to perform a wide range of optional adaptations,
- Load from the centre frame to the wings via the hydraulic system for even mass distribution,
- Good displacement and seed-to-soil contact,
- Ensures uniform seed depth, resulting in plants of equal size.
- Combines technical expertise and craftsmanship with innovation, thoughtful design, and rigorous testing.
Inter-Row Spring Tine Cultivator
The row-spacing spring-bladed hoeing machine is used to eliminate weeds between rows of planted crops (such as beet, beans, sunflower, maize, soybean, tomato, beans, melon, and watermelon, etc.) and to loosen the soil. Additionally, it facilitates better incorporation of fertiliser into the soil. These processes accelerate plant growth.
The hoeing machine is adjustable between rows. During hoeing, plant protection discs (star blades) prevent the soil from covering the plants when they are small. Thanks to its leg structure, it can be used easily even on stony terrain.
The soil depth setting of each unit can be adjusted according to the size of the plant to be hoed. Thanks to the units, each of which moves independently, guide discs prevent the machine from deviating and disrupting its direction of movement while maintaining the working depth on uneven terrain, allowing hoeing without damaging the plant even on sloping terrain.
Italian Type Rotary Tiller
The Italian-type rotary tiller is a suspended machine that tills the soil without leaving raw soil between its legs due to the structure of its legs, breaking the plough layer and tilling the soil without bringing the infertile soil in the lower layer to the surface. Italian-type ploughing allows for soil cultivation at a high working depth. This promotes soil aeration, prevents rainwater from pooling on the surface, allowing water to be drawn to the base and preserving soil moisture, and breaks up the hard layer, allowing plant roots to grow freely towards the base. This work increases yield. Additionally, the roller attached to the chassis presses the soil lifted by the discs simultaneously, minimising moisture loss after the operation.
Pull-Type Fibre-Reinforced Offset Diskarov
A wheeled offset disc harrow with a lift mechanism is a soil cultivation machine used to prepare the seedbed by breaking up clods and mixing the soil after ploughing.
After harvesting, various operations such as cutting and shredding plant residues and weeds, and breaking up the crust layer can be performed with pull-type wheeled offset disc harrows. Their most significant advantage among secondary soil cultivation tools is that they can be used within a wide range of soil moisture levels.
Model ÇLTD offset disc harrows prevent wind and water erosion while breaking up stubble due to their hydraulic system and versatile movement capability. The mechanism on the wheel ensures that the wheel stays at ground level, allowing the working depth to be effectively adjusted.
Vibcom
Vibcom is a two- or three-row seedbed preparation machine that combines multiple soil cultivation operations in a single pass at high speed. It is the right choice for warming the seedbed before spring. The choice of machine configuration ensures versatility in use. It is adjustable to a depth of up to 17 cm. It is manufactured in various working widths ranging from 2.5 metres to 8 metres.
The model with three rows of vibrating snake tongues (ideal for clay soils) prefers dense and shallow sowing, allowing the soil surface to warm up and aerate before sowing without mixing the deep soil. The double-row model with 25 cm wide claw shoes achieves an aggressively tilled, fragmented surface layer.
Vibcom ensures a perfectly level area, enabling rapid seedbed preparation and creating the ideal conditions for uniform crop establishment.
