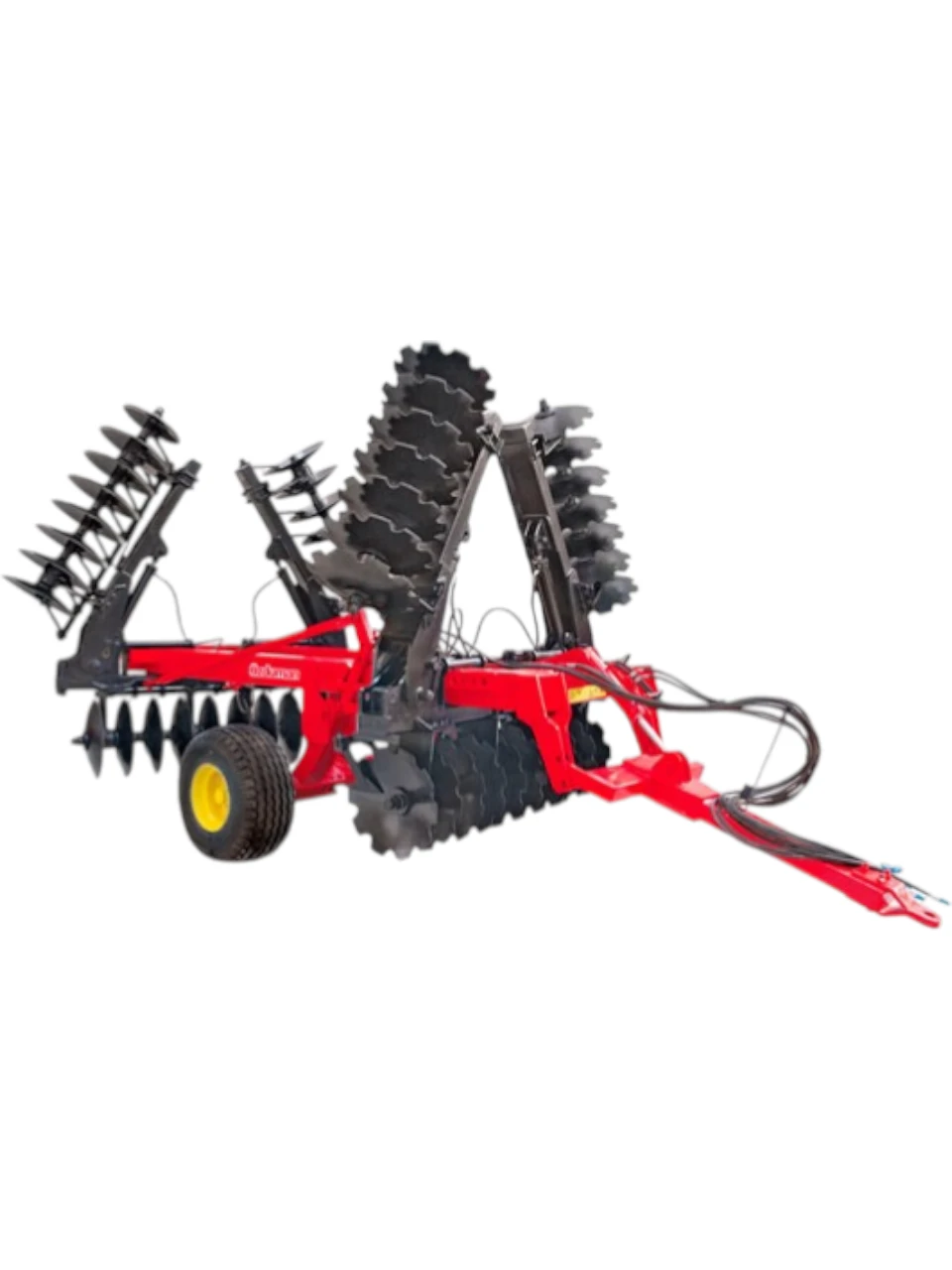

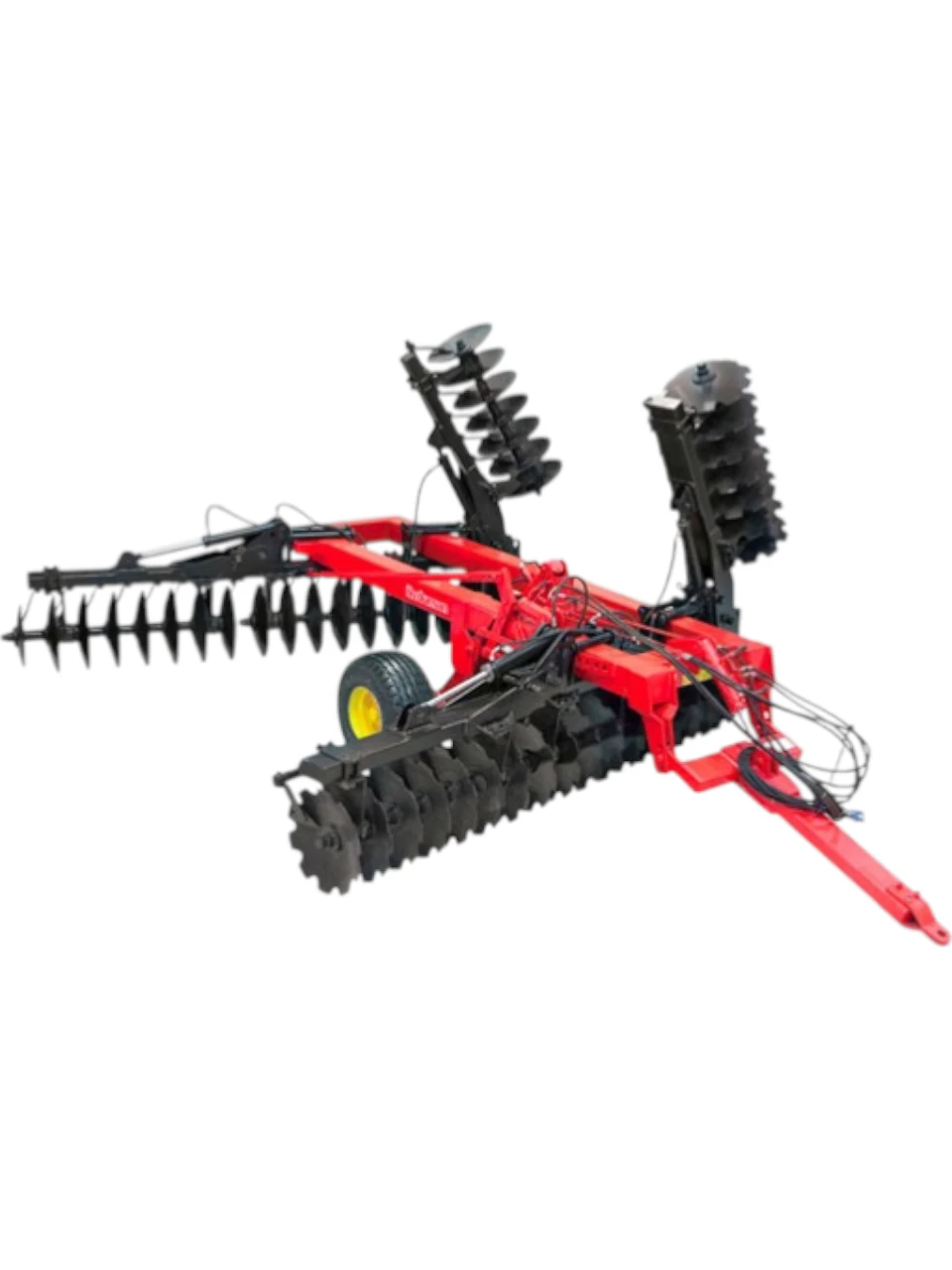

FOLDABLE V-TYPE OFFSET GOBLE DISCAROV LGD-KV

Hydraulic lift-equipped folding V-type offset disc harrows are trailed machines used to cut and shred crop residues (maize, sunflower, wheat, etc.) and weeds after harvest, and to break up the crust layer.

After harvesting, it prepares the field for direct sowing without the need for another agricultural machine by performing stubble-free soil cultivation during dry months when ploughs cannot be used. In addition to this feature, it can be used for cultivating soil with high moisture content.

The LGD – KV model offset disc harrows move with a hydraulic system and, due to their multi-directional movement capability, prevent wind and water erosion while breaking up stubble. The mechanism on the wheel ensures that the wheel runs at ground level, allowing the working depth to be effectively adjusted.

It has a greater working width than other soil cultivation machines. It is much more economical than other soil cultivation machines because it has a higher working speed and greater working width. Due to these features, fuel, time, labour, maintenance and spare part costs are lower. It reduces the share of soil cultivation in the total cost.

Hydraulic cylinders are used to enable the wings to open and close in working and road positions, allowing tools with a working width greater than three metres to be transported on roads. This enables easy transport in a folded position on roads and narrow transport routes.
