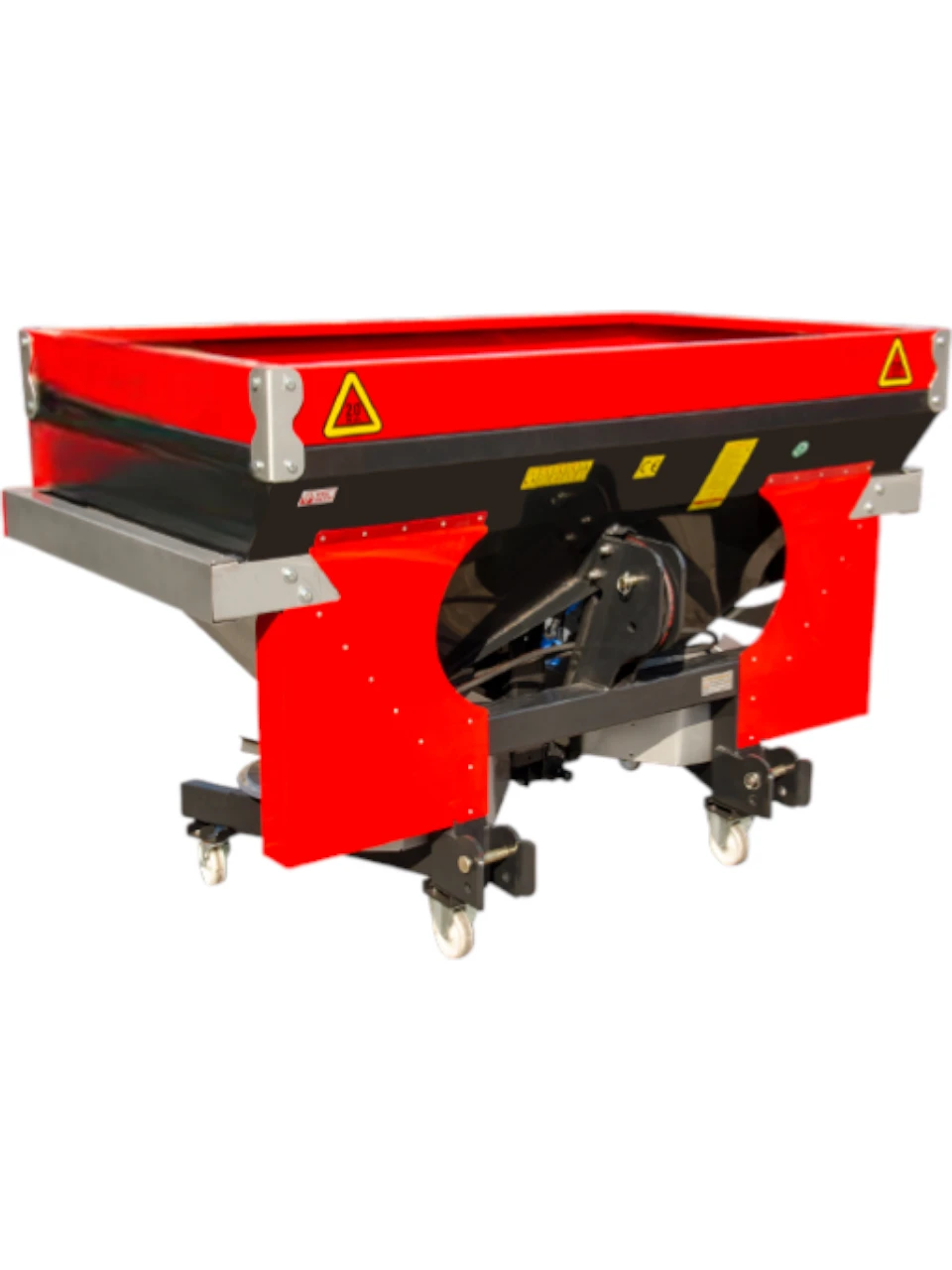

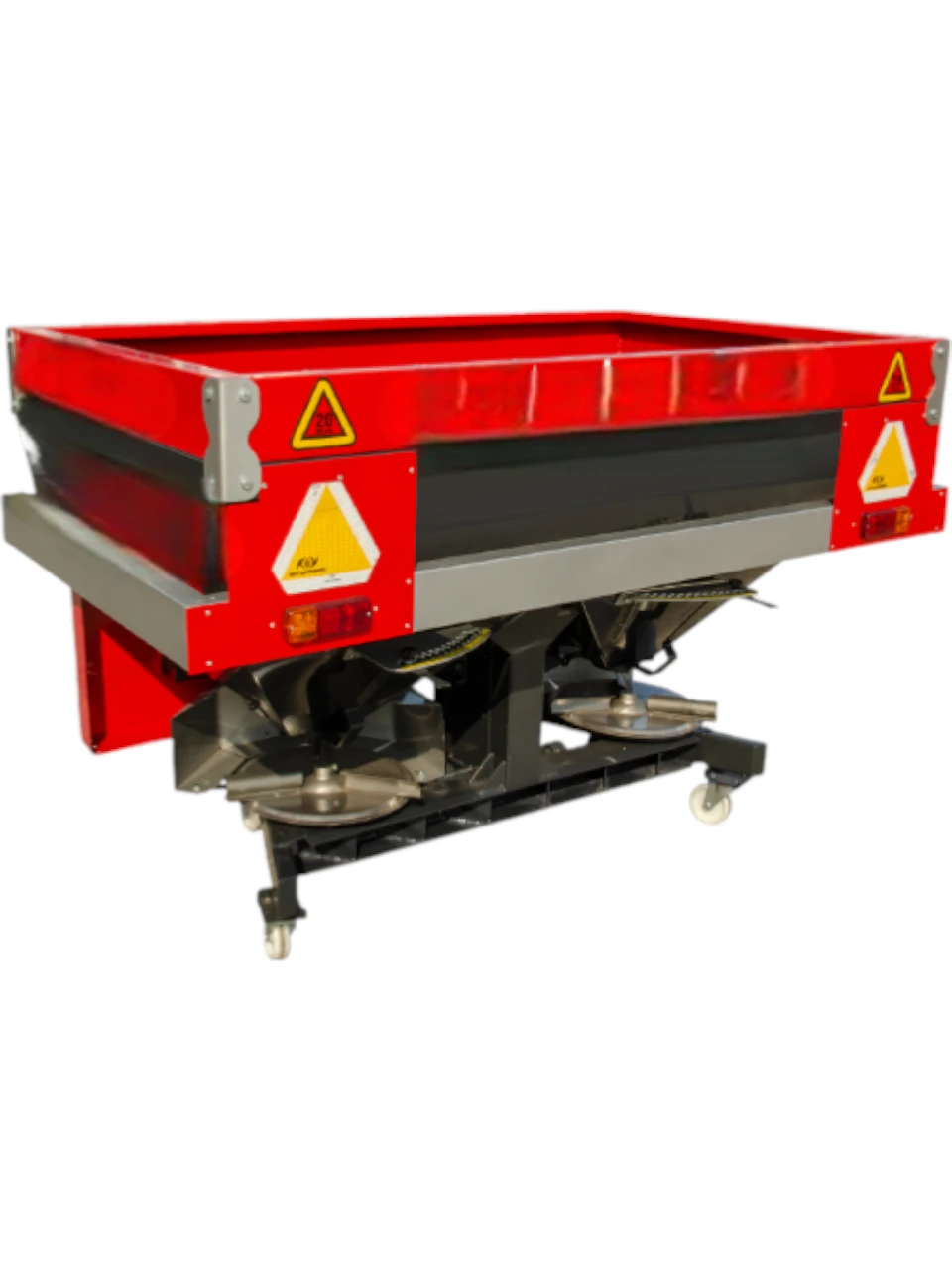

Double Disc Hydraulic Horizontal Mixer Fertilizer Spreader 1000/1200/1500kg
₺100,00
The double-disc fertiliser spreaders, manufactured as the suspended (hydraulic) type, are attached to the tractor via a three-point hitch system. The spreaders can be manufactured with hydraulic control. Thanks to the hydraulic control lever, fertiliser application at field boundaries is very easy from the tractor cab, and the machine can be closed quickly to prevent unnecessary fertiliser waste. The low-speed horizontal mixer inside the fertiliser hopper ensures homogeneous flow without breaking up or damaging the fertiliser. This ensures that the fertiliser is distributed more homogeneously across the field and flows more smoothly. The machine’s fertiliser spreading width can reach 18-36m. The hopper capacity comes in three types: 1000, 1200 and 1500 litres.
Stok kodu:
ANL-004
Kategoriler: FERTILIZING & SPRAYING MACHINES
Etiketler: double disc hydraulic horizontal mixer fertilizer spreader
Açıklama
| Teknik Özellikler | AT-FTS1000 | AT-FTS1200 | AT-FTS1500 | |
| Depo kapasitesi | kg | 1000 | 1200 | 1500 |
| İş genişliği | m | 18-36 | 18-36 | 18-36 |
| Yükseklik | mm | 1300 | 1450 | 1700 |
| Genişlik | mm | 1100 | 1100 | 1100 |
| Uzunluk | mm | 2250 | 2250 | 2250 |
| Ağırlık | kg | 400 | 440 | 485 |
| Dağıtıcı Kanat Sayısı | adet | 2×3 | 2×3 | 2×3 |
| Dağıtıcı Disk Sayısı | 2 | 2 | 2 | |
| Gerekli Traktör Gücü | hp | 65-80 | 90-110 | 90-110 |
Değerlendirmeler (0)
“Double Disc Hydraulic Horizontal Mixer Fertilizer Spreader 1000/1200/1500kg” için yorum yapan ilk kişi siz olun Yanıtı iptal et
