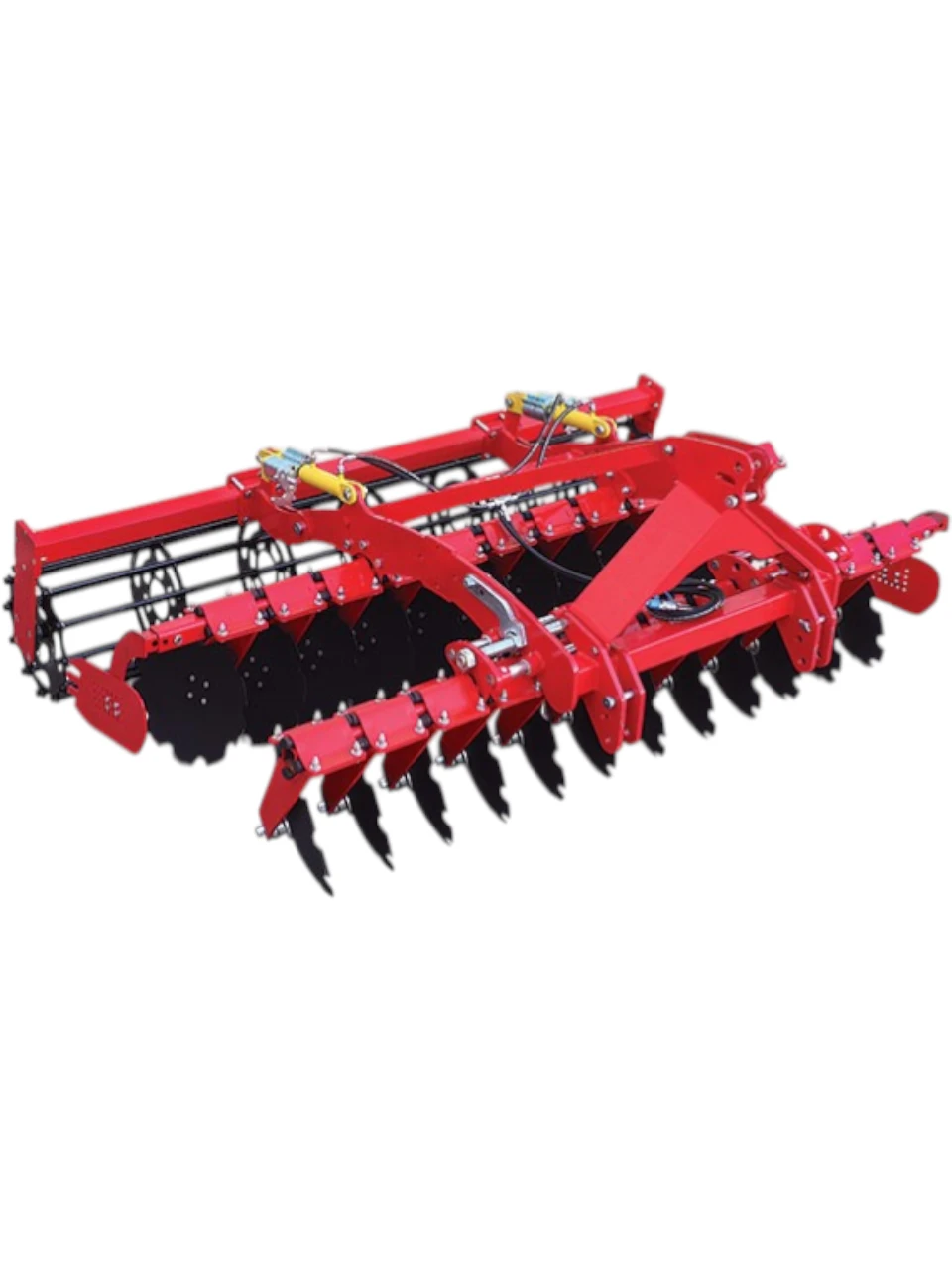

COMPACT DISC HARROW GAIUS
₺100,00
İlgili ürünler
DISC PLOUGH ADP
The disc harrow is a suspended soil cultivation machine primarily used for soil preparation in preparing the seedbed after harvest, attached to the tractor with a three-point linkage system.
Disc harrows operate with the discs rotating in the working position, so they do not get stuck on obstacles. In sandy and stony fields, disc wear is less than that of mouldboard ploughs. As they operate by rotating, they do not require excessive traction power from the tractor and do not strain it. It is a machine with simple settings and easy operation.
Advantages of using a disc plough:
*In moist soils worked with disc ploughs, the wavy structure of the furrow bottom prevents mud formation in the soil.
*The concave structure of the discs breaks up the soil more effectively, preventing clod formation.
*As the discs operate by rotating, they easily overcome obstacles such as stones and hard plant roots, preventing potential breakdowns and blockages.
*As the force distribution related to soil resistance is spread over a wide surface area on the discs, they are resistant to high forces in terms of strength and are not easily damaged.
*As the edges of the discs are sharpened from the outside, they rub against the sharp edge of the plough wall during operation and gradually sharpen themselves over time.
ITALIAN TYPE ROTARY TILLER
The Italian-type rotary tiller is a suspended machine that tills the soil without leaving raw soil between its legs due to the structure of its legs, breaking the plough layer and tilling the soil without bringing the infertile soil in the lower layer to the surface. Italian-type ploughing allows for soil cultivation at a high working depth. This promotes soil aeration, prevents rainwater from pooling on the surface, allowing water to be drawn to the base and preserving soil moisture, and breaks up the hard layer, allowing plant roots to grow freely towards the base. This work increases yield. Additionally, the roller attached to the chassis presses the soil lifted by the discs simultaneously, minimising moisture loss after the operation.
SPRING – LOADED LEG DISK HARROW SDH
The spring-loaded disc harrow, with its spring-loaded independent disc structure and machine construction, performs a more effective cutting and mixing process than conventional disc harrows, with each disc operating independently thanks to its separate bearing. The springs on each disc prevent breakages and damage to the frame by allowing the discs to move back and forth when encountering an obstacle. It is less affected by the unevenness of the terrain. It causes almost no damage to the levelling of the terrain. In addition, the roller attached to the chassis presses the soil lifted by the discs at the same time, minimising moisture loss after the process. The machine can operate comfortably in heavy clay soils.
THREE-HANGER DOUBLE BALANCED WHEEL VANVEY VNY
The Vanvey is a second-class soil cultivation machine. These are tools inserted into the field after ploughing, specifically to prepare a ploughed field for sowing. The process of breaking up the clods created by the plough to make the field surface more suitable for sowing is called double ploughing.
The three-point, dual-balance wheeled Vanvey is a suspended soil cultivation machine used for soil cultivation such as subsoiling and triple tillage in fields that have been left fallow for a year after being ploughed, as well as for breaking up weeds in vineyards, gardens and fields and aerating the soil.
The purpose of using a vanvey is to:
*Prepare the seedbed by breaking up the soil sufficiently.
*Kill weeds in fallow farming methods and preserve moisture accumulation in the soil by preventing evaporation from the soil.
*Break up plant debris on the soil surface and ensure that organic debris in the topsoil layer mixes with the soil.
*To break up the crust layer and sometimes partially compact the soil, thereby creating better soil conditions and accelerating germination.
VERTICAL ROTARY TILLER
The vertical rotary tiller uses blades positioned vertically in the soil to perform a circular rotation, breaking up clods on the soil surface, loosening the soil surface, and expanding the inner surface of the soil. It also works by mixing the soil without turning it over, and since the soil surface is evenly distributed during operation, moisture balance is maintained.
It breaks down the stubble remaining on the soil surface after harvest, allowing it to mix easily into the soil.
The blades are made of special steel that has undergone hot rolling, resulting in high wear resistance.
Thanks to the specially designed gearbox (1000 rpm) and the different positions of the rotors, the blades enter the soil slowly even in heavy and compacted soils, thus minimizing power consumption and vibrations.
The spring bearings of the side guards increase the lateral movement of the belts.
Protective hoppers are available to prevent any soil clods, stone fragments, plant debris, hoses, or other obstacles from entering the space between the rotor shafts.
The height-adjustable roller of the vertical rotovators ensures a constant working depth.
Locally produced, robust, powerful, and high-performance vertical rotovators cater to all tractor power levels with various working width options.
X-TYPE SUSPENDED TANDEM DISC HARROW ATD
The X-type suspended tandem disc harrow is used in field and garden cultivation to prepare seedbeds and seedling beds. It shreds plant stalks and residues left in the field after harvest and mixes them into the soil. It breaks up clods formed in the field after using tools such as ploughs, harrows and cultivators and loosens the soil. Thanks to its three adjustable hangers, it can be used comfortably even in wooded areas.
It is an X-type suspended machine that incorporates organic and inorganic fertilisers into the soil, thereby aerating and loosening the soil and maintaining the balance of the soil's water and temperature conditions.
