Mounted Type Turbo Atomizer is designed for efficient orchard and vineyard spraying applications. It offers 400, 600, 800, and 1000 liter tank capacity options to meet different agricultural needs. Equipped with the powerful Annovi Reverberi AR 1064 pump, it delivers 50 BAR pressure and 106 L/min flow rate for strong and effective spraying performance. The durable polyethylene tank provides excellent resistance to chemicals and long service life. Featuring 14 brass stopper nozzles, it ensures uniform and precise spray distribution. The silent 10-blade plastic fan with 82 cm (32”) and 90 cm (36”) diameter options provides strong air flow and effective coverage up to 12 meters. Adjustable gearbox transmission system (1-3/5 – 1-4/5) ensures smooth and reliable power transfer. Suitable for tractors starting from 50 HP, this agricultural turbo atomizer is an ideal solution for modern crop protection operations.

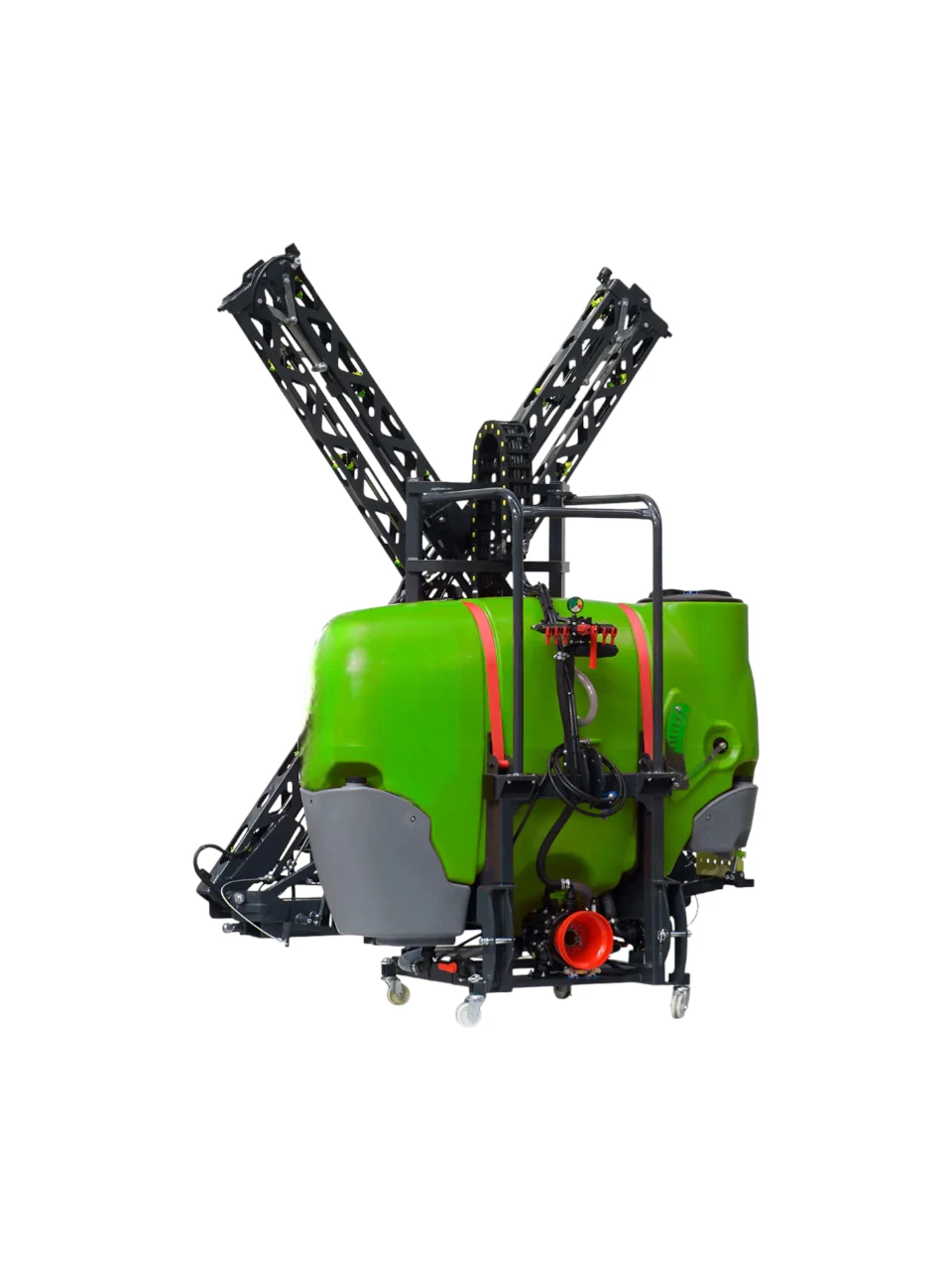

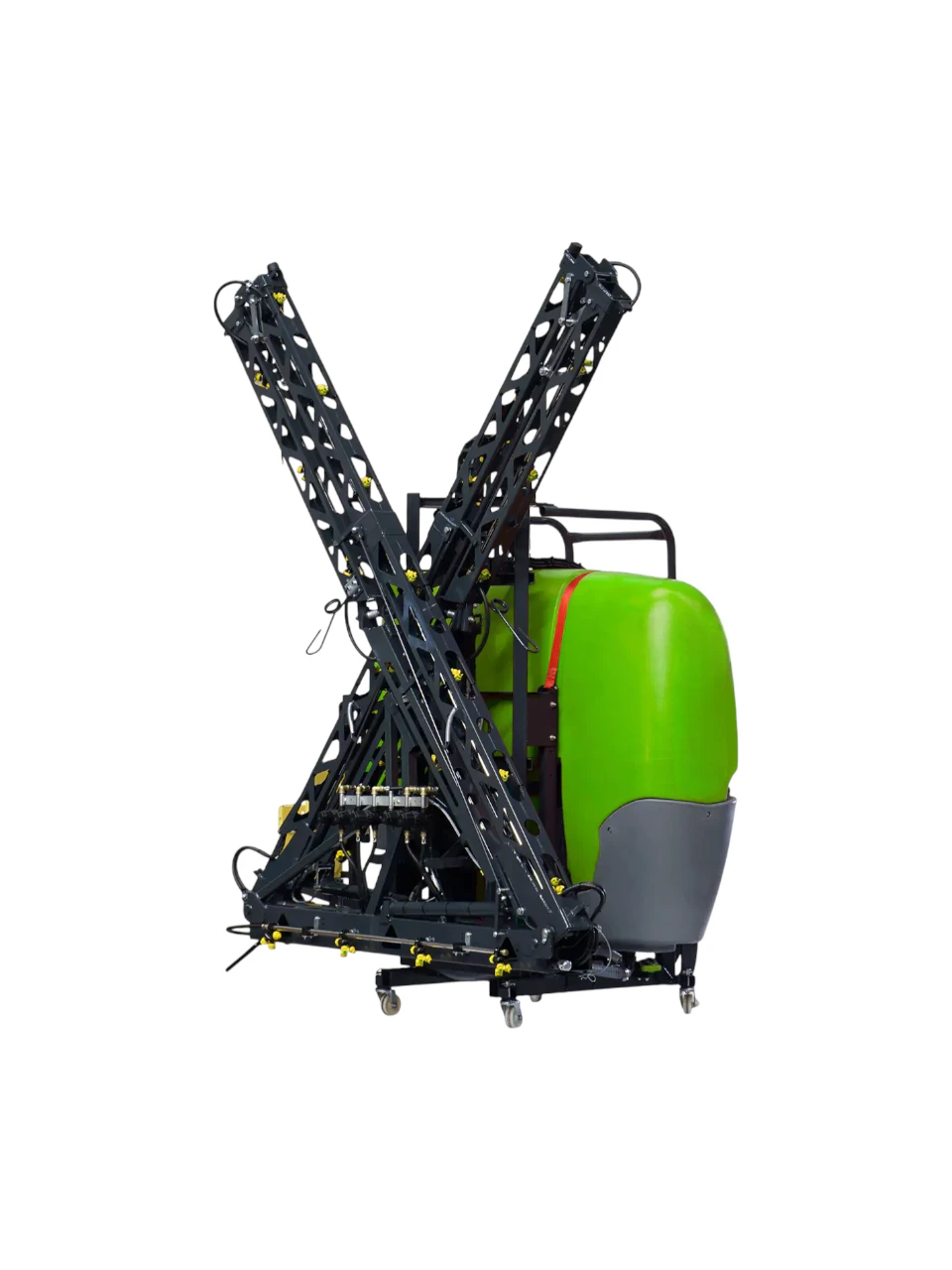

Hanging Type New Amazon X Field Sprayer 1200lt
₺100,00
The New Amazon X Boom Field Sprayer is designed for high-efficiency spraying in large field areas. Its durable chassis structure and balanced X-boom system ensure homogeneous and precise spraying. It offers practical use advantages by allowing easy mounting on tractors. The adjustable boom structure adapts to different field widths. Its modern design offers low pesticide consumption and maximum plant protection performance.
Açıklama
| TANK CAPACITY | ||||
| 1000 LT | 1200 LT |
| 1000 LT DIMENSIONS | WIDTH | HEIGHT | DEPTH | WEIGHT |
| 350 CM | 235 CM | 160 CM | 433 KG |
| TECHINCAL SPECIFICATIONS | |
| TANK MATERIAL | Plastik (Polietilen) |
| PUMP MODEL | Annovi Reverberi AR 145 BP |
| PUMP PRESSURE | 20 BAR |
| PUMP FLOW RATE | 145 L/dk |
| CONTROL UNIT | Annovi Reverberi UCM – 5 |
| OPERATING SPEED | 540 dev/dk |
| NOZZLE TYPE | Braglia T-Jet 4WAY |
| NUMBER OF NOZZLES | 24 (12mt) – 30 (15mt) |
| ARM TYPE | FOLDABLE STEEL SHEET |
| HYDRAULIC LIFT | YES |
| WORKING WIDTH | 12/15 |
| MIN . TRACTOR POWER | 70 HP |
Değerlendirmeler (0)
Shipping & Delivery
İlgili ürünler
Inter-Tree Fertilizer Spreader 300/450kg
The centrifugal fertiliser spreader is attached to the tractor via the tractor's three-point hitch system. The machine operates via the tractor's PTO shaft. Fertilisation can be adjusted as required using the adjustment lever. Specially designed outlet nozzles enable fertilisation between fruit trees and vines. There are two types with a tank capacity of 300-500 litres.
Italian Trailed Type Side Folding Boom Field Sprayer 3000lt
Italian Trailed Type Side Folding Boom Field Sprayer is engineered for large-scale agricultural spraying and professional farming operations. Featuring a 3000 liter polyethylene tank, it offers high durability and excellent resistance to agricultural chemicals. Powered by the reliable Annovi Reverberi AR 1604 pump, it delivers 20 BAR pressure and 145 L/min flow rate for strong and uniform spray distribution. The Arag Bravo 180S control unit ensures precise spraying control and efficient liquid management in the field. Equipped with Braglia T-Jet 4-way nozzles, it provides consistent coverage and improved crop protection performance. Its steel side-folding boom structure enhances stability during operation and allows easy transport between fields. Available with 12 and 15 meter working width options and hydraulic lifting system, it maximizes productivity and operational efficiency. Suitable for tractors starting from 60 HP, this trailed agricultural boom sprayer is an ideal solution for modern crop protection and export-focused agribusinesses.
Italian Trailed Type Straight Boom Field Sprayer 3000lt
Italian Trailed Type Straight Boom Field Sprayer is designed for high-capacity and professional agricultural spraying operations. With a 3000 liter polyethylene tank, it provides excellent durability and chemical resistance for long-term field use. Equipped with the powerful Annovi Reverberi AR 1604 pump, it delivers 20 BAR pressure and 145 L/min flow rate for strong and uniform spray performance. The brass 5-way control unit ensures reliable liquid management and precise spraying control. Braglia T-Jet 4-way nozzles provide consistent coverage and improved crop protection efficiency. Its profile straight folding boom structure offers 15, 18, and 21 meter working width options for maximum productivity. The hydraulic lifting system allows easy boom adjustment and safe transport between fields. Suitable for tractors starting from 60 HP, this trailed agricultural boom sprayer is an ideal solution for modern farming and export-oriented agribusiness.
Italian Trailed Type X Boom Field Sprayer 2000lt
Italian Trailed Type X Boom Field Sprayer is designed for high-capacity and professional agricultural spraying operations. With a 2000 liter polyethylene tank, it offers durability, chemical resistance, and long service life in demanding field conditions. Equipped with the powerful Annovi Reverberi AR 1604 pump, it delivers 20 BAR pressure and 145 L/min flow rate for strong and uniform spray performance. The Arag Bravo 180S control unit ensures precise spraying control and efficient water management. Its steel sheet X-folding boom structure provides stability and reliable operation during field use. Available with 12 and 15 meter working width options, it maximizes productivity in large-scale farming. The hydraulic lifting system allows easy height adjustment and safe transport on the road. Suitable for tractors starting from 60 HP, this trailed agricultural boom sprayer is an ideal solution for efficient crop protection and modern farming needs.
Mounted Type Gearbox Turbo Atomizer 400/600/800/1000l
Mounted Type Gearbox Turbo Atomizer is designed for professional orchard and vineyard spraying applications. With 400, 600, 800, and 1000 liter tank capacity options, it provides flexible solutions for different farm sizes and crop needs. Powered by the reliable Annovi Reverberi AR 1064 pump, it delivers 50 BAR pressure and 106 L/min flow rate for strong and consistent spray performance. The durable polyethylene tank ensures long service life and high resistance against agricultural chemicals. Equipped with 14 brass stopper nozzles, it guarantees uniform spray distribution and effective crop protection. The 5-stage plastic fan with 82 cm (32") diameter provides powerful air flow and efficient coverage up to 12 meters. Its adjustable gearbox transmission system (1-3/5 – 1-4/5) ensures smooth power transfer and stable operation at 540 rpm. Suitable for tractors starting from 70 HP, this agricultural turbo atomizer offers high efficiency, durability, and competitive performance for modern farming operations.
Mounted Type New Amazon Rear Folding Boom Field Sprayer 1000lt/1200lt
Mounted Type New Amazon Rear Folding Boom Field Sprayer is designed for efficient and precise field spraying. It features a durable polyethylene tank with 1000 or 1200 liter capacity options. The strong rear folding boom ensures easy transport and compact storage. Hydraulic lifting system allows smooth height adjustment during operation. It is equipped with a high-performance diaphragm pump for stable pressure and uniform spray distribution. The sprayer provides working width options of 12, 15, and 18 meters. It is compatible with tractors starting from 70 HP. Ideal for wheat, corn, sunflower, and other field crops.
Square Type Manual Fertilizer Spreader 400/500/600/800kg
The single-disc fertiliser spreaders, manufactured as mounted types, are attached to the tractor via a three-point hitch system. The machine operates via the tractor's PTO shaft. Fertilisation can be adjusted as required using the adjustment lever. Thanks to specially designed outlet nozzles, equal amounts of fertiliser are distributed on both sides. The hopper capacity is available in four variants: 400, 500, 600, and 800 litres.
