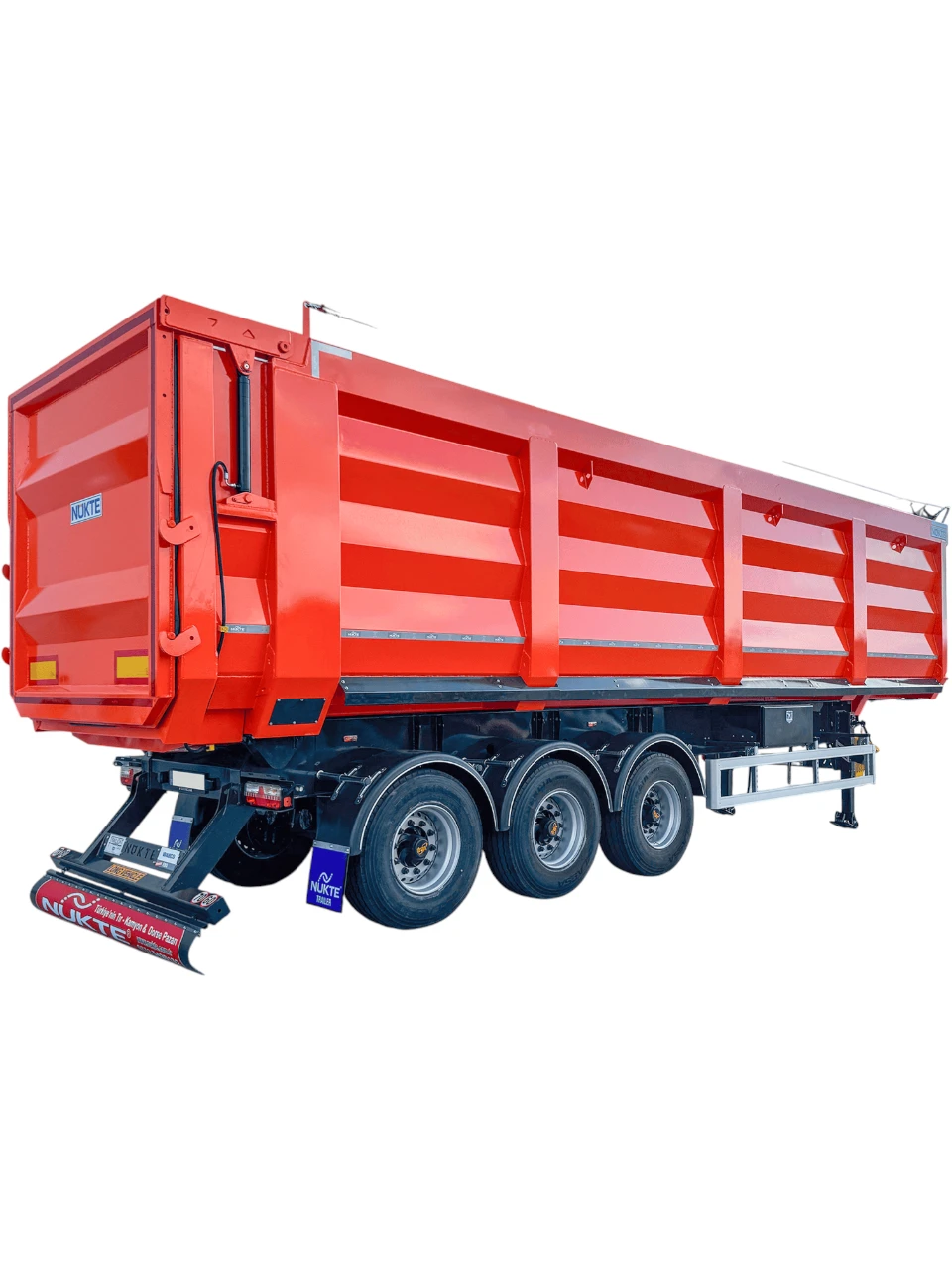

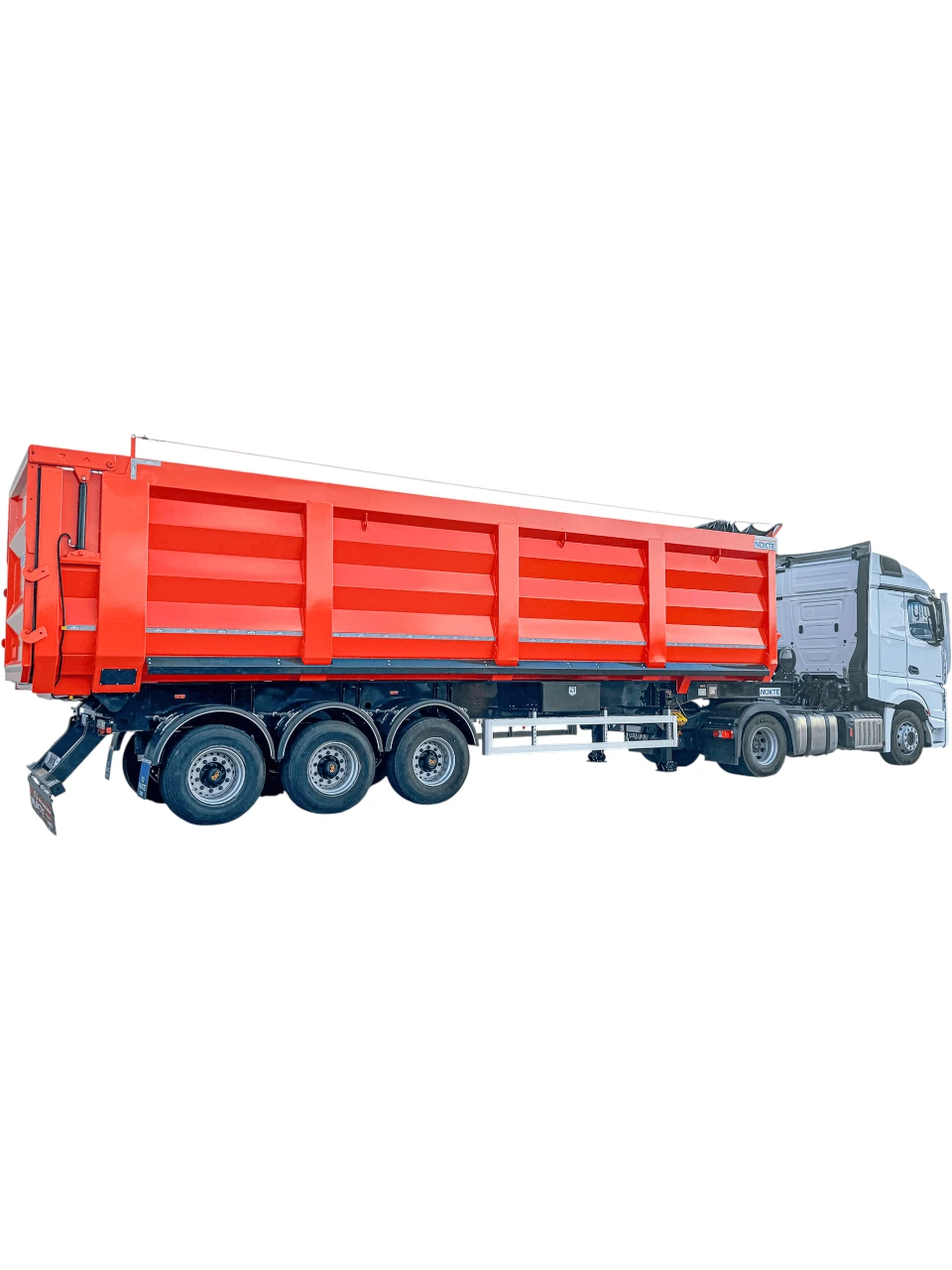

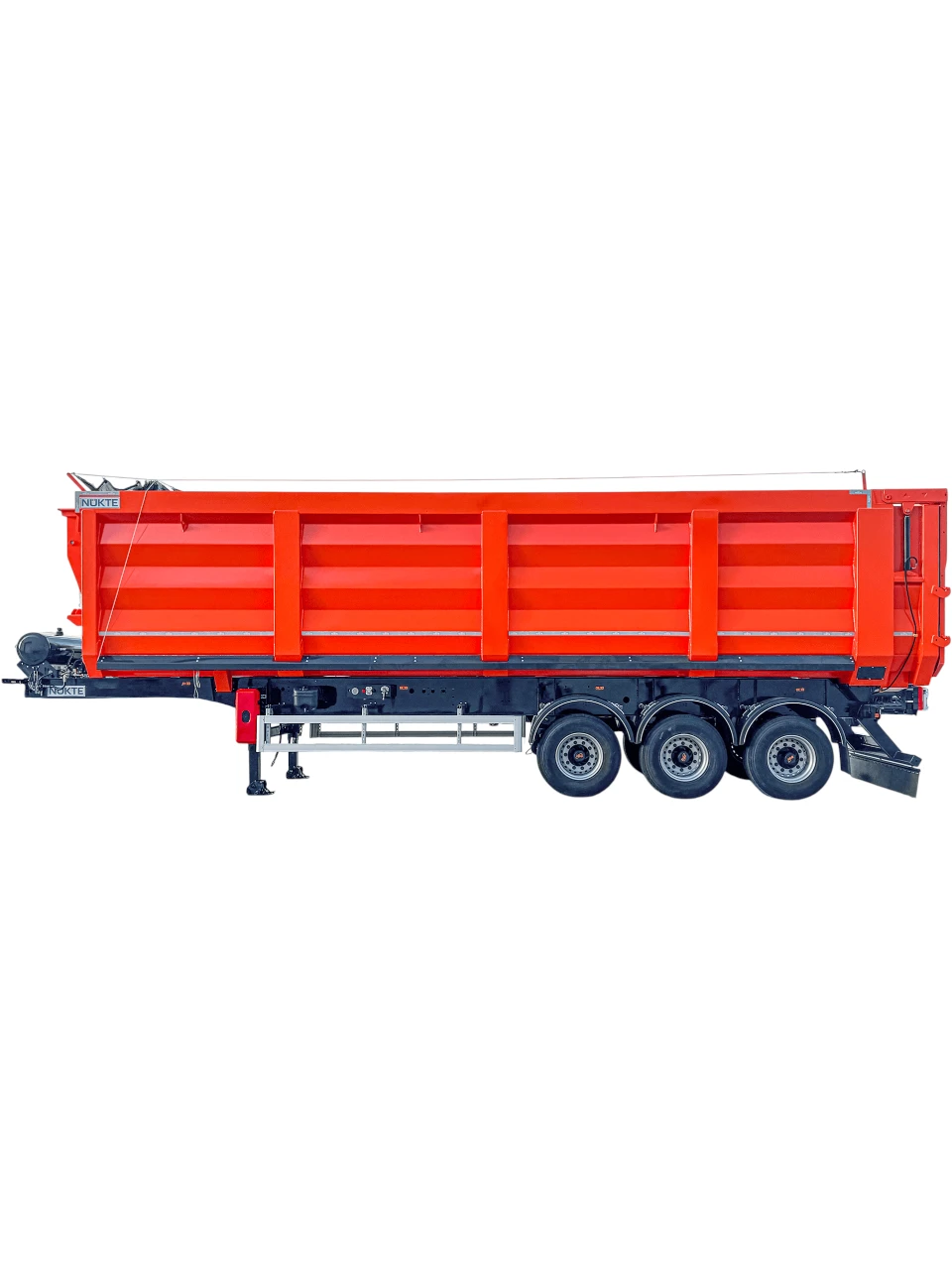

ACCORDION TYPE TIPPER TRAILER 37/45/52/60m³

The Accordion Type Tipper Trailer is available in 37 / 45 / 52 / 60 m³ capacity options, designed for high-volume transportation needs.
Its sliding body structure allows efficient unloading while maintaining excellent balance and stability.
The reinforced steel construction ensures durability and long service life in heavy-duty operations.
Thanks to its lightweight yet strong design, it maximizes payload capacity and fuel efficiency.
The advanced hydraulic system provides smooth and controlled tipping performance.
Its reliable braking and axle systems guarantee safety even under demanding road conditions.
The accordion-type side structure offers flexibility and enhanced load management.
Ideal for bulk materials such as grain, coal, sand, and agricultural products, this trailer delivers efficiency, durability, and high operational performance.

Add to quote
Stok kodu: NKT-002 Kategoriler: Etiketler: , ,
Açıklama

GENERAL DIMENSIONS
Body Volume
:
60 m³
Overall Length
:
11,935 mm
Loading Area Length
:
10,600 mm
Body Height
:
2,480 mm
Overall Width
:
Maximum 2,550 mm
Wheelbase
:
7900 mm
BOX
Box Features
:
2 mm to 12 mm thick SSAB Brand HARDOX 450 – 500 TUF high-strength, wear- and impact-resistant sheet metal is used.
Rear Cover System
:
Mechanical (Top-Swinging / Single-Side or Double-Side Opening), Hydraulic or Hydromechanical Cover Opening System.
CHASSIS
Longitudinal Member (I-Section)
:
Manufactured using full automation submerged arc welding technology with mirror plate 3–8 mm / top and bottom flanges 6–12 mm STRENX S700MC (SSAB) flexible and high-strength steel plates.
Buffer
:
Standard folding type buffer compatible with the asphalt finisher machine.
King Pin
:
2″ or 3″ removable bolt-connected flanged king pin compliant with ECE R55 regulation.
Mechanical Leg
:
A gear-driven telescopic leg compliant with ISO 1726 and ISO 1726-2 standards, with a capacity of 24 tonnes dynamic load and 50 tonnes static load, will be used.
Side Guard
:
Type-approved side guard compliant with ECE R73 regulation.
WALKING ASSEMBLY
Axles
:
Imported axles with a capacity of 3×9 tonnes or domestic brand axles with a capacity of 3×12 tonnes (drum or disc).
Tyres / Rims
:
6 x 385/65 R22.5 tyres + 1 spare tyre / 7 steel or aluminium rims.
Axle Lift
:
Automatic 1st Axle Lift (Single Axle).
Suspension System
:
Air Suspension Axle System.
BRAKING SYSTEM
EBS Modulator
:
An electro-pneumatic EBS 2S/2M braking system compliant with UN ECE R13 regulations and incorporating an anti-lock braking system (ABS) is used. (WABCO or KNORR)
Brake Bellows
:
Four 30/30 brake bellows and two 30 service brake bellows are used.
Brake Chocks
:
HALDEX or SAF brand Automatic Brake Chock.
HYDRAULIC SYSTEM
Lifting Piston
:

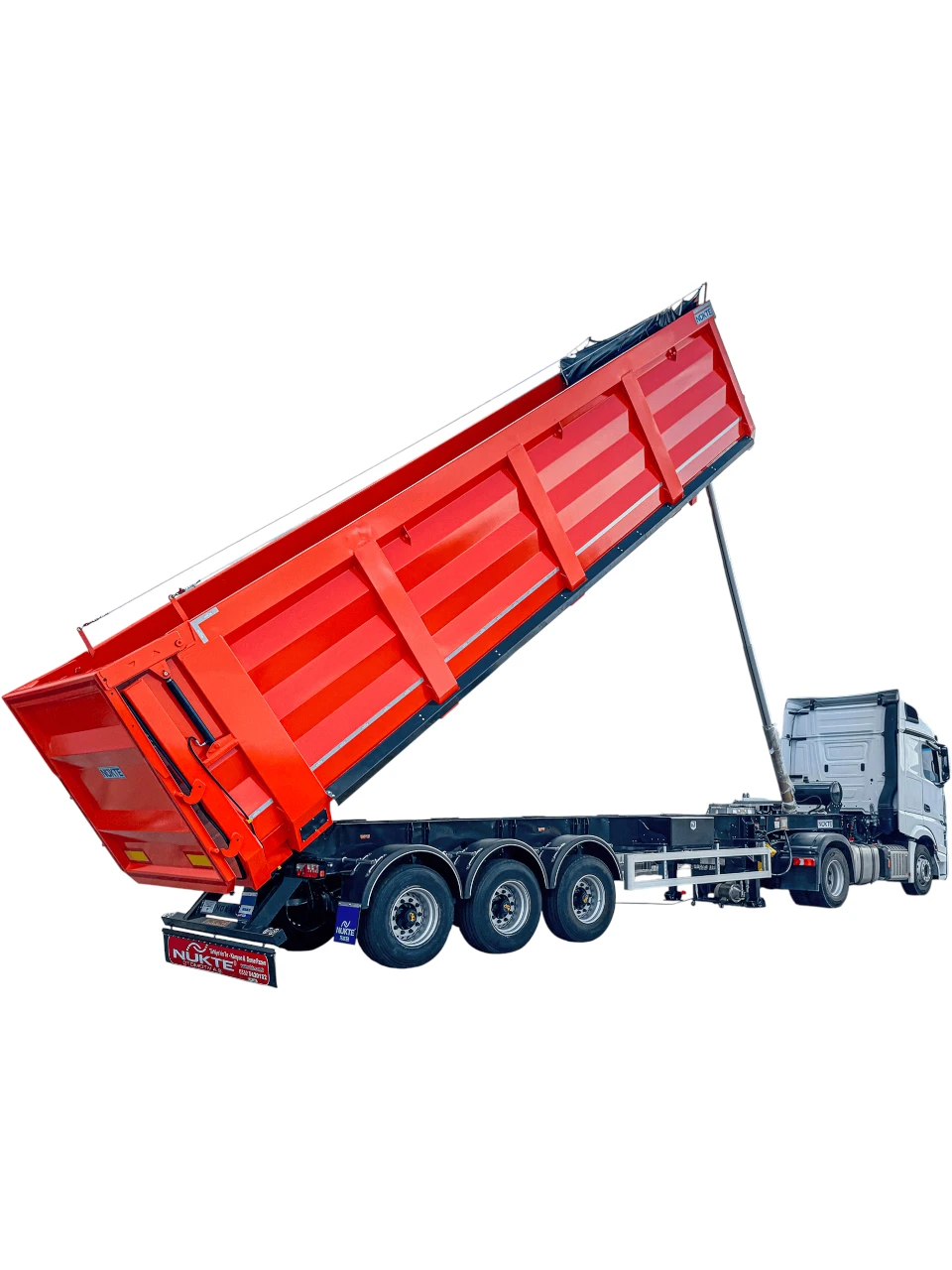

A Hydromas or HYVA brand telescopic cylinder with sufficient capacity to provide a minimum lifting angle of 45° is used. When the piston reaches the final stage, a bypass system is applied to prevent strain.
Oil Tank and Hoses
:
Hydromas or HYVA brand Oil Tank of suitable volume with oil gauge and oil filter, high pressure resistant hydraulic hoses.
OTHER FEATURES
Electrical System
:
Aspöck Europoint III or SABA brand lighting system with 2×7 and 1×15 pin sockets compliant with UN ECE R48 regulation and ADR legislation, with 24 V LED side position lamps.
Accessories
:
Sliding or lever pneumatic tarpaulin system / 30 litre plastic water tank / Plastic tool cabinet / Spare wheel mechanism / Wheel chock / Fire extinguisher cabinet / Rear work light (optional) / Required warning labels.
Sandblasting and Painting
:
Steel sandblasting compliant with SA2.5 standards / Epoxy primer and double coat of fully acrylic oven paint.
